  • Stock: Email For Price & Availability
  • Model: MC03-ASHD622-24320PN-016
  • Weight: 60.00g
  • SKU: MC03-ASHD622-24320PN-016
  • UPC: MC03-ASHD622
  • MPN: ASHD622-24320PN-016
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£0.00
Add to Cart
Ask Question
Add to Wish List Compare this Product
Manufacturer
Brand Deutsch
Brand Series Deutsch Autosport Heavy Duty
Connector Series ASHD
Manufacturer TE

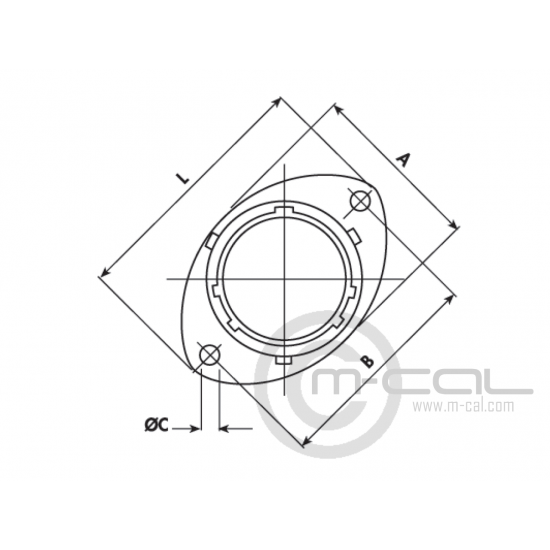

Physical Dimensions
Diameter C (mm) 3.20
Diameter D (mm) 25.40
Dimension A (mm) 30.30
Dimension B (mm) 34.80
Dimension F (mm) 16.05
Dimension G (mm) 33.50
Dimension L (mm) 41.00
Dimension P (mm) 3.00
Connector Housing Attributes
Keyway Colour N - Red
Modification Code 016
Pin Pattern 22-24320
Pins / Sockets P
Shell Size 22
Total Contacts 5
Housing Code 6
Housing Style 6 - Free plug
Keyway Code N
Connector Contacts Data - Primary
Primary Contacts Max Amps (A) ** 200
Primary Contacts Quantity 2
Primary Contacts Size (awg) 4
Primary Contacts Wire Size (mm) 16
Connector Contacts Data - Secondary
Secondary Contacts Max Amps (A) ** 7.5
Secondary Contacts Quantity 3
Secondary Contacts Size (awg) 20
