MC07-3R222K163-25-0 - Raychem Boot 90Deg AS Connector Shell Size 20 - 22

MC07-3R222K163-25-0 - Raychem Boot 90Deg AS Connector Shell Size 20 - 22
MC07-3R222K163-25-0 - Raychem Boot 90Deg AS Connector Shell Size 20 - 22
  • Stock: Available
  • Model: MC07-3R222K163-25-0
  • Weight: 14.20g
  • SKU: MC07-3R222K163-25-0
  • UPC: MC07-3R222K1
  • MPN: 222K163-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£14.63
Add to Cart
Ask Question
Add to Wish List Compare this Product
90 Deg Heat Shrink Boot for Autosport Connector Shell Size 20-22

Raychem 222K Series Heat Shrinkable Boot

Based on heatshrink technology the Raychem 222K series heat-shrinkable boot offers mechanical protection sealing and protecting the connector termination and offering mechanical strain relief for the Deutsch Autosport circular connectors and grooved adaptors. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

Typical Features & Benefits
  • Operating Temperature -75ºC to +150ºC
  • Excellent chemical and abrasion resistance
  • Long-term, high temperature fluid resistance
  • Minimum Shrink Temperature +135ºC
  • Recommended Installation Temperature +175ºC

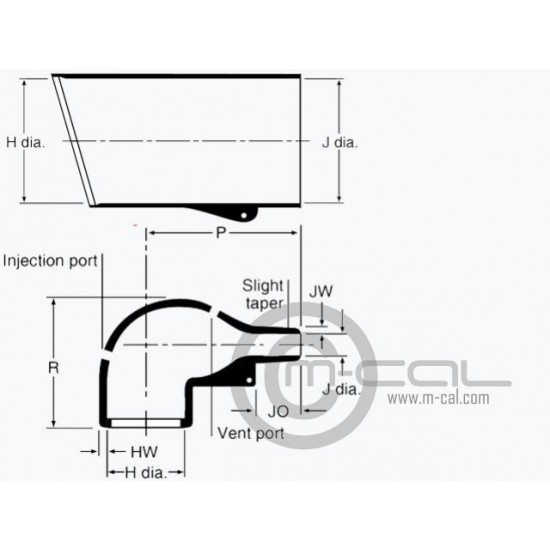

  • Connector Entry(H) As Supplied 43.00mm-Fully Recovered 28.20mm
  • Cable Entry(J) As Supplied 43.00mm-Fully Recovered 9.90mm
  • Colour-Black
Connector Housing Attributes
Total Contacts 0
