MC07-3222D953 - Raychem Rotary Potentiometer Heat Shrink Boot 26mm

MC07-3222D953 - Raychem Rotary Potentiometer Heat Shrink Boot 26mm
MC07-3222D953 - Raychem Rotary Potentiometer Heat Shrink Boot 26mm
  • Stock: Available
  • Model: MC07-3222D953
  • Weight: 6.40g
  • SKU: MC07-3222D953
  • UPC: MC07-3222D95
  • MPN: 222D953-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£21.35
Add to Cart
Ask Question
Add to Wish List Compare this Product

Raychem Rotary Potentiometer Heat Shrink Boot 26mm



Raychem Rotary Potentiometer Heat Shrink Boot 26mm

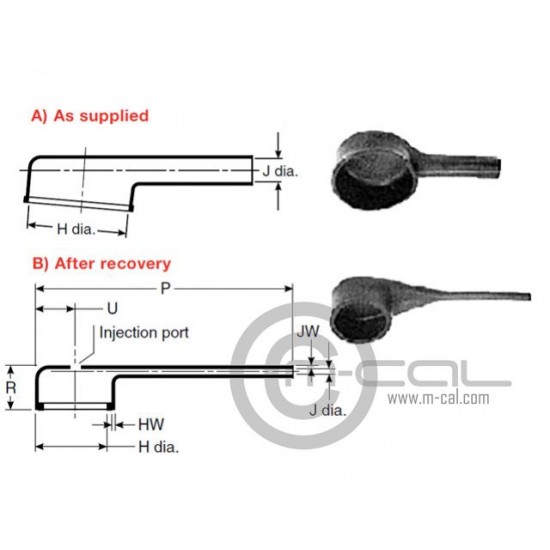

  • Sensor Entry (H) As Supplied 34.2mm-Fully Recovered 26.0mm
  • Cable Entry (J) As Supplied 9.6mm-Fully Recovered 3.0mm
  • Colour-Black

    Raychem 222D Series Heat Shrinkable Boot for rotary potentiometer termination

    Based on heatshrink technology the Raychem 222D series heat-shrinkable boot offers mechanical protection sealing, protecting the Sensor termination and offering mechanical strain relief. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

    Typical Features & Benefits
    • Operating Temperature -75ºC to +150ºC
    • Excellent chemical and abrasion resistance
    • Long-term, high temperature fluid resistance
    • Minimum Shrink Temperature +135ºC
    • Recommended Installation Temperature +175ºC
    • Connector Housing Attributes
    Total Contacts 0
