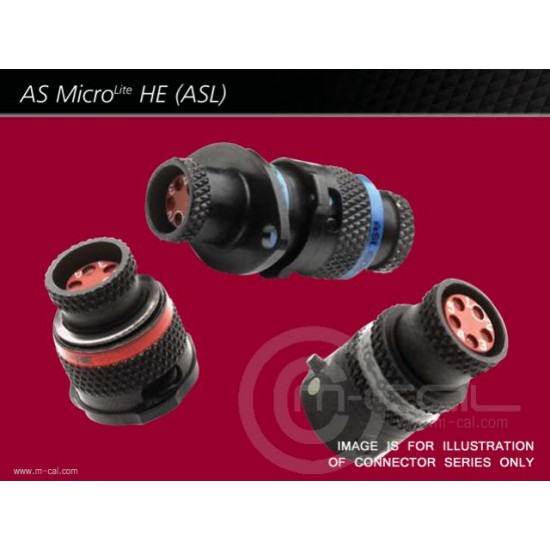

MC03-ASL606-05PN-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard

MC03-ASL606-05PN-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
MC03-ASL606-05PN-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
MC03-ASL606-05PN-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
MC03-ASL606-05PN-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
MC03-ASL606-05PN-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
MC03-ASL606-05PN-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
MC03-ASL606-05PN-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
  • Stock: Available
  • Model: MC03-ASL606-05PN-HE
  • Weight: 12.00g
  • SKU: MC03-ASL606-05PN-HE
  • UPC: MC03-ASL606-
  • MPN: ASL606-05PN-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£34.88
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard

The Deutsch Autosport AS MICROLite HE (ASL) series connector is in excess of 30% lighter than the origin al AS Micro HE and approximately 8mm shorter, whilst still retaining all the critical features including the renowned Deutsch #23 contacts. The AS MicroLite HE is fully intermateable with the AS Micro HE.

Features

  • 5-Way Autosport MicroLite (ASL) Series Connector
  • Body Style 6 (Free plug) With Pins
  • Shell Size 6, Contact Arrangement 06-05
  • N Keyway-Red Band
  • 5x 23awg Pins (Accepts 28,26,24,22awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-860492731-P
  • Connector Overall Dimensions (Excluding Boot) Length 19x14mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro LITE HE
    Connector Series ASL
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour N - Red
    Pin Pattern 06-05
    Pins / Sockets P
    Shell Size 06
    Total Contacts 5
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.60
    Housing Code 6
    Housing Style 6 - Free plug
    Keyway Code N
    Durability Cycles 500
    Dielectric Voltage 1000
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 3
    Primary Contacts Quantity 5
    Primary Contacts Size (awg) 23
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55
