MC07-3222D963 - Raychem Rotary Potentiometer Heat Shrink Boot 34mm

MC07-3222D963 - Raychem Rotary Potentiometer Heat Shrink Boot 34mm
MC07-3222D963 - Raychem Rotary Potentiometer Heat Shrink Boot 34mm
  • Stock: Available
  • Model: MC07-3222D963
  • Weight: 13.00g
  • SKU: MC07-3222D963
  • UPC: MC07-3222D96
  • MPN: 222D963-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£19.45
Add to Cart
Ask Question
Add to Wish List Compare this Product

Raychem Rotary Potentiometer Heat Shrink Boot 34mm



Raychem Rotary Potentiometer Heat Shrink Boot 34mm

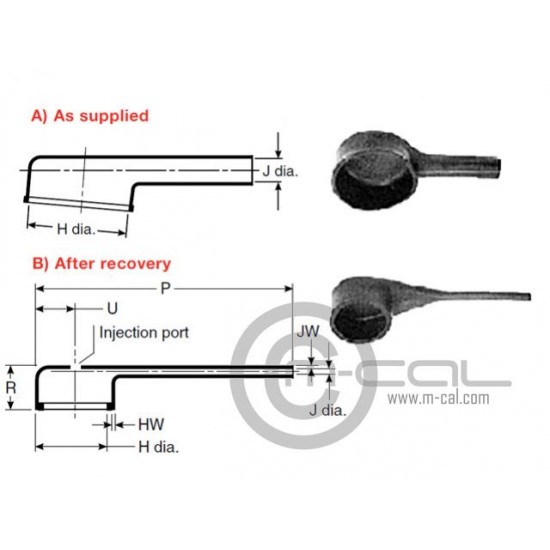

  • Sensor Entry (H) As Supplied 43.6mm-Fully Recovered 34.1mm
  • Cable Entry (J) As Supplied 11.4mm-Fully Recovered 3.6mm
  • Colour-Black

    Raychem 222D Series Heat Shrinkable Boot for rotary potentiometer termination

    Based on heatshrink technology the Raychem 222D series heat-shrinkable boot offers mechanical protection sealing, protecting the Sensor termination and offering mechanical strain relief. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

    Typical Features & Benefits
    • Operating Temperature -75ºC to +150ºC
    • Excellent chemical and abrasion resistance
    • Long-term, high temperature fluid resistance
    • Minimum Shrink Temperature +135ºC
    • Recommended Installation Temperature +175ºC
    • Connector Housing Attributes
    Total Contacts 0

    Tooling & Related Products

    Image Product Price Quantity Add
    Adhesive
    Adhesive
    Two-part epoxy resin adhesive 50mg Tube Two-part epoxy resin adhesive 50mg Tube
    £44.53
    Raychem RT125 Adhesive 50ml Duo Syringe Raychem RT125 Adhesive 50ml Duo Syringe
    £31.70
    Aplicator Gun
    Aplicator Gun Hellerman Adhesive 50ml Duo Pack Aplicator Gun Hellerman Adhesive 50ml Duo Pack
    £67.35
    Mixer Nozzle
    50ml Duo Pak Mixer Nozzle 50ml Duo Pak Mixer Nozzle
    £2.18
    Suggested Heat Shrink Tubing
    Suggested Heat Shrink Tubing
    Raychem DR25 Heat Shrink Tubing Black 3/8in (9.5mm) Raychem DR25 Heat Shrink Tubing Black 3/8in (9.5mm)
    £6.78
