MC07-3R222A111-25-0 - Raychem Boot 90Deg AS Connector Shell Size AS Micro

MC07-3R222A111-25-0 - Raychem Boot 90Deg AS Connector Shell Size AS Micro
MC07-3R222A111-25-0 - Raychem Boot 90Deg AS Connector Shell Size AS Micro
  • Stock: In Stock
  • Model: MC07-3R222A111-25-0
  • Weight: 0.90g
  • SKU: MC07-3R222A111-25-0
  • UPC: MC07-3R222A1
  • MPN: 222A111-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£9.08
Add to Cart
Ask Question
Add to Wish List Compare this Product
90 Deg Heat Shrink Boot for Autosport Connector Shell Size AS Micro

Raychem 222A Series Heat Shrinkable Boot

Based on heatshrink technology the Raychem 222A series heat-shrinkable boot offers mechanical protection sealing and protecting the connector termination and offering mechanical strain relief for the Deutsch Autosport circular connectors and grooved adaptors. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

Typical Features & Benefits
  • Operating Temperature -75ºC to +150ºC
  • Excellent chemical and abrasion resistance
  • Long-term, high temperature fluid resistance
  • Minimum Shrink Temperature +135ºC
  • Recommended Installation Temperature +175ºC

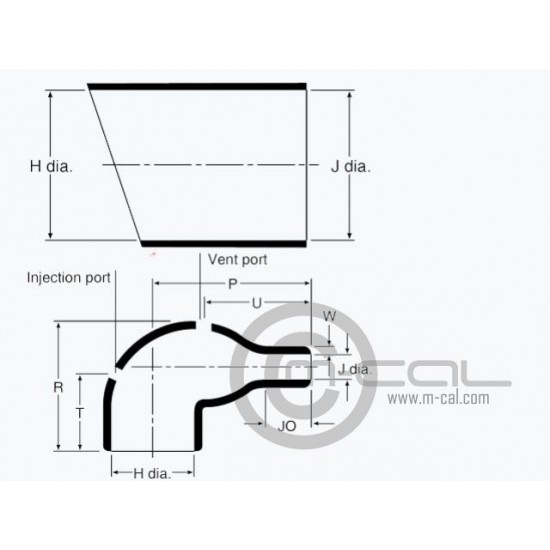

  • Connector Entry(H) As Supplied 17.80mm-Fully Recovered 7.90mm
  • Cable Entry(J) As Supplied 17.80mm-Fully Recovered 3.80mm
  • Colour-Black
Connector Housing Attributes
Total Contacts 0
