MC03-ASX002-03SA-HE - Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 0 Flange Receptacle Yellow A Keyway Sockets Standard

MC03-ASX002-03SA-HE - Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 0 Flange Receptacle Yellow A Keyway Sockets Standard
MC03-ASX002-03SA-HE - Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 0 Flange Receptacle Yellow A Keyway Sockets Standard
  • Stock: Available
  • Model: MC03-ASX002-03SA-HE
  • Weight: 7.00g
  • SKU: MC03-ASX002-03SA-HE
  • UPC: MC03-ASX002-
  • MPN: ASX002-03SA-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£51.42
Add to Cart
Ask Question
Add to Wish List Compare this Product

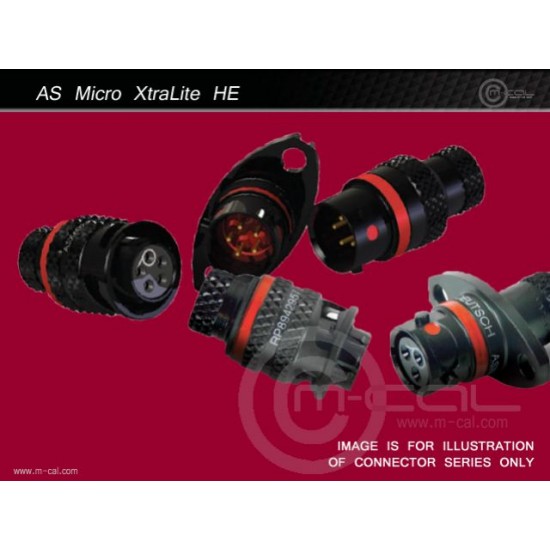

Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 0 Flange Receptacle Yellow A Keyway Sockets Standard

Following the Micro UltraLite HE connector range, Deutsch UK have introduced a new evolution of Motorsport Micro connectors - the Deutsch Autosport AS Micro XtraLite HE connector. The smallest diameter, lightest AS connector, this new connector offers a solution where space is at its most restrictive.

Features

  • 3-Way Autosport Micro XtraLite (ASX) Series Connector
  • Body Style 0 (2 hole flanged receptacle) With Sockets
  • Shell Size 2, Contact Arrangement 02-03
  • A Keyway-Yellow Band
  • 3x 22awg Sockets (Accepts 26,24,22awg Wire) Max 5.0A
  • For Replacement Contacts Use Part Number MC05-8604984-S
  • Connector Overall Dimensions (Excluding Boot) Length 18x20mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro XtraLITE HE
    Connector Series ASX
    Manufacturer TE
    Connector Housing Attributes
    Pin Pattern 02-03
    Pins / Sockets S
    Shell Size 02
    Total Contacts 3
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.76
    Housing Code 0
    Housing Style 0 - Flange Receptacle
    Keyway Code A
    Durability Cycles 500
    Dielectric Voltage 1500
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 5
    Primary Contacts Quantity 3
    Primary Contacts Size (awg) 22
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Gasket
    Deutsch Autosport AS Connector Gasket Shell Size 02 All Keyways Standard Deutsch Autosport AS Connector Gasket Shell Size 02 All Keyways Standard
    £8.59
    Nut Plate
    Deutsch Autosport AS Connector Nut Plate Shell Size 02 All Keyways Standard Deutsch Autosport AS Connector Nut Plate Shell Size 02 All Keyways Standard
    £16.21
    Pro Cap
    Deutsch Autosport AS Connector Shell Size 02 Style 9 Pro Cap For ASX 3 and 5 Way Receptacle All Keyways Standard Deutsch Autosport AS Connector Shell Size 02 Style 9 Pro Cap For ASX 3 and 5 Way Receptacle All Keyways Standard
    £30.58
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for ASU Shell 03 Hellermann Heat Shrink Boot Straight for ASU Shell 03
    £5.59
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX
    £8.13
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 02 ASX 3 and 5 Way Raychem Boot Straight AS Connector Shell Size 02 ASX 3 and 5 Way
    £8.71
    Mating Connector Options
    6 - Free plug
    Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 6 Free plug Yellow A Keyway Pins Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 6 Free plug Yellow A Keyway Pins Standard
    £51.11
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 22g Pins Autosport Connector Filler Plugs for 22g Pins
    £0.56
    Spare Sockets
    Autosport Connector Spare Socket ASX 3way, ASU 3way, ASC Autosport Connector Spare Socket ASX 3way, ASU 3way, ASC
    £3.85
    Connector Autosport Terminal Socket ASX 3way, ASU 3way, ASC Connector Autosport Terminal Socket ASX 3way, ASU 3way, ASC
    £36.56
    Tooling
    Contact Positioner
    Autosport Crimp Tool Positioner for ASC / ASU 3 way Sockets Autosport Crimp Tool Positioner for ASC / ASU 3 way Sockets
    £0.00
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    Tooling Contacts Type 2
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
