Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 6 Free plug Yellow A Keyway Pins Standard

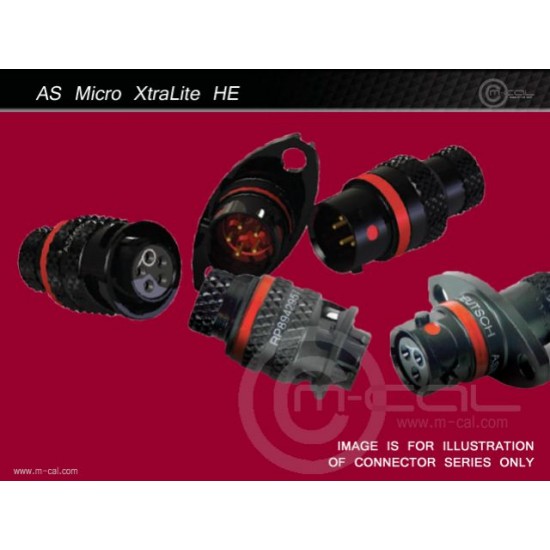

Following the Micro UltraLite HE connector range, Deutsch UK have introduced a new evolution of Motorsport Micro connectors - the Deutsch Autosport AS Micro XtraLite HE connector. The smallest diameter, lightest AS connector, this new connector offers a solution where space is at its most restrictive.

Features

  • 3-Way Autosport Micro XtraLite (ASX) Series Connector
  • Body Style 6 (Free plug) With Pins
  • Shell Size 2, Contact Arrangement 02-03
  • A Keyway-Yellow Band
  • 3x 22awg Pins (Accepts 26,24,22awg Wire) Max 5.0A
  • For Replacement Contacts Use Part Number MC05-860494631-P
  • Connector Overall Dimensions (Excluding Boot) Length 18x10mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro XtraLITE HE
    Connector Series ASX
    Manufacturer TE
    Connector Housing Attributes
    Pin Pattern 02-03
    Pins / Sockets P
    Shell Size 02
    Total Contacts 3
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.76
    Housing Code 6
    Housing Style 6 - Free plug
    Keyway Code A
    Durability Cycles 500
    Dielectric Voltage 1500
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 5
    Primary Contacts Quantity 3
    Primary Contacts Size (awg) 22
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Autosport Pro-Cap, for Shell Size 02 ASX 3 and 5 Way Free Plugs Autosport Pro-Cap, for Shell Size 02 ASX 3 and 5 Way Free Plugs
    £30.58
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for ASU Shell 03 Hellermann Heat Shrink Boot Straight for ASU Shell 03
    £5.59
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX
    £8.13
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 02 ASX 3 and 5 Way Raychem Boot Straight AS Connector Shell Size 02 ASX 3 and 5 Way
    £8.71
    Mating Connector Options
    0 - Flange Receptacle
    Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 0 Flange Receptacle Yellow A Keyway Sockets Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 0 Flange Receptacle Yellow A Keyway Sockets Standard
    £51.42
    1 - Inline Receptacle
    Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 1 Inline Receptacle Yellow A Keyway Sockets Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 1 Inline Receptacle Yellow A Keyway Sockets Standard
    £46.54
    2 - PCB Receptacle Flange Mount
    Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Sockets Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Sockets Standard
    £0.00
    6 - Free plug
    Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 6 Free plug Yellow A Keyway Sockets Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 3 Way Shell Size 02 Pin Layout 02-03 Style 6 Free plug Yellow A Keyway Sockets Standard
    £51.42
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 22g Pins Autosport Connector Filler Plugs for 22g Pins
    £0.56
    Spare Pins
    Autosport Connector Spare Pin ASX 3way, ASU 3way, ASC Autosport Connector Spare Pin ASX 3way, ASU 3way, ASC
    £2.58
    Connector Autosport Terminal Pin ASX 3way, ASU 3way, ASC Connector Autosport Terminal Pin ASX 3way, ASU 3way, ASC
    £24.31
    Tooling
    Contact Positioner
    Autosport Crimp Tool Positioner for ASC / ASU 3 way Sockets Autosport Crimp Tool Positioner for ASC / ASU 3 way Sockets
    £0.00
    Autosport Crimp Tool Positioner for ASC / ASU 3 way Pins Autosport Crimp Tool Positioner for ASC / ASU 3 way Pins
    £142.49
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    Tooling Contacts Type 2
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
