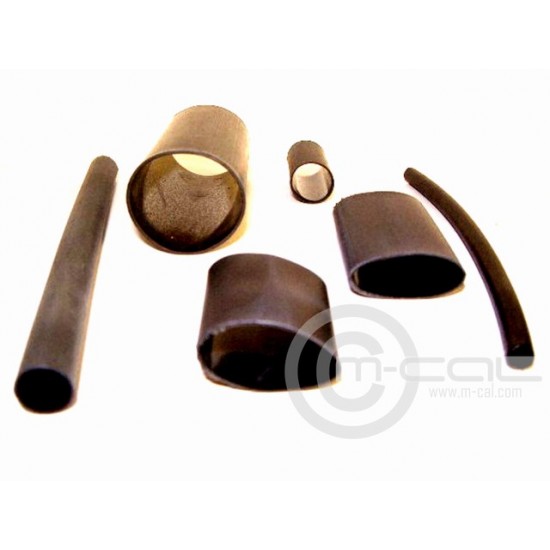

MC07-382022 - Heat Shrink Tubing Adhesive Lined 6.0mm dia

The CGAT Series Flexible 3:1 Shrink Ratio, Heat-shrinkable Adhesive-lined Polyolefin Tubing is used to seal back-end connector, wire splices, break-outs, cable jackets and electrical components. CGAT has an internal adhesive coating, that when heated, melts and flows to form a positive environmental barrier to prevent moisture penetration.

Features & Benefits

• Environmentally seals and protects
• Excellent mechanical protection
• 3:1 shrink ratio
• High Strength Bonding

  Operating Temperature
  • From -30ºC to +80ºC

    Installation
    • Minimum shrink temperature +80ºC
    • Minimum full recovery +115ºC
    • Supplied Diameter 6.0mm
    • Fully Recovered Diameter 2.0mm

      Specifications / Approvals
      • RW-2050


      • MoTeC Part Number 62022
