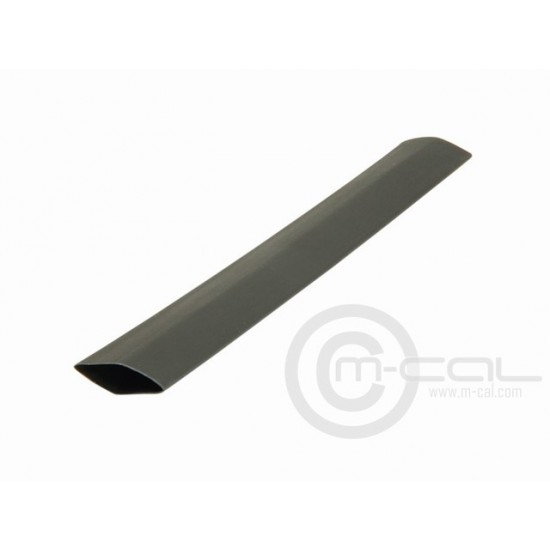

MC07-382005 - Heat Shrink Tubing Irradiated Polyolefin 6.4mm (1/4)in

The RNF-100 Premium Grade, Flexible, Flame Retardant Polyolefin, 2:1 Heat-shrinkable Tubing is designed to provide superior mechanical (abrasion, cut-through, strain relief), thermal, and fluidresistance performance. Used extensively in military applications for lightweight harness jackets, insulation, identification, colour-coding and protection and in the Motorsport industry for low-cost harness systems. The unique blend of properties makes it suitable for a wide range of demanding military and commercial applications.

Features & Benefits

• Excellent balance of performance properties
• Excellent mechanical & electrical properties
• Excellent chemical & solvent resistance
• 2:1 shrink ratio
• Supplied Diameter 6.4mm
• Fully Recovered Diameter 3.2mm

  Operating Temperature

  • From -55ºC to +135ºC

    Installation

    • Minimum shrink temp +95ºC
    • Minimum full recovery +121ºC
    • MoTeC Part Number 62005
