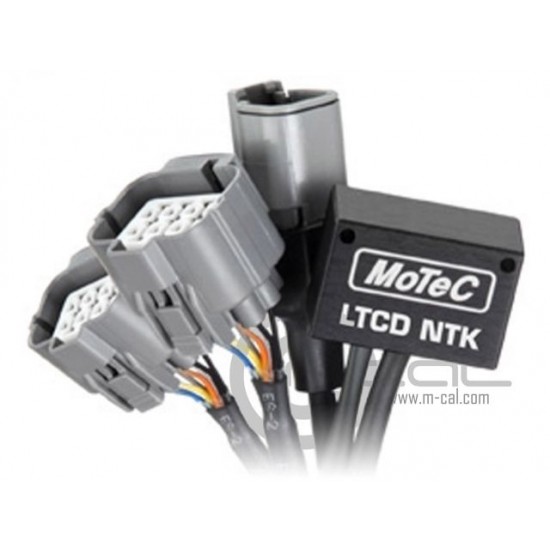

MC32-361305 - MoTeC LTC-NTK Lambda to Can Dual

MoTeCs LTCD NTK (Lambda to CAN) modules monitor, control and diagnose NTK Lambda sensors, transmitting readings on a CAN bus. When multiple LTCD NTKs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

NOTE: MoTeCs LTCD NTK is also available in a singular version, LTC NTK

Sensors compatibility

NTK, 5 wire sensor

Basic specifications

Inputs/Outputs

2 x NTK Lambda sensors (MoTeC 57007)

Power supply voltage 11 V - 16 V

Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A - 1 A and up to 2 A on startup)

Communications

1 x CAN at 1 Mbit/sec

Connectors

1 x 4 pin male DTM connector (power/CAN)

2 x mating connectors for NTK Lambda sensors

Physical

Dimensions 38 x 26 x 23.5 mm excluding wiring looms and connectors

Weight 100 grams

Maximum ambient temperature 100 DegC
