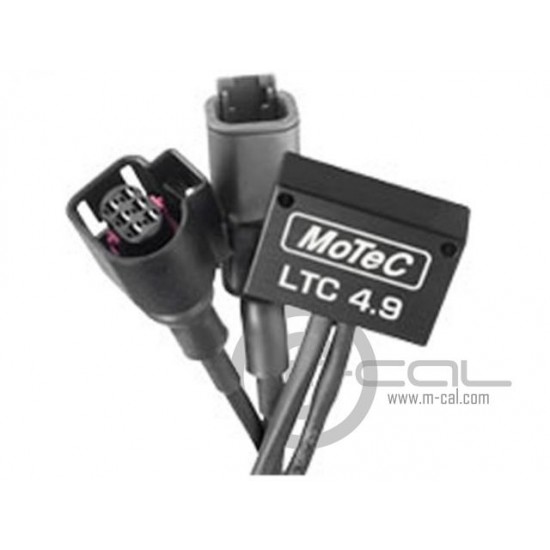

MC32-361300 - MoTeC LTC Lambda to Can

MoTeCs LTC (Lambda to CAN) modules monitor, control and diagnose Bosch LSU 4.9 Lambda sensors, transmitting readings on a CAN bus. When multiple LTCs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

NOTE: MoTeCs LTC is also available in a dual version, LTCD

Sensors compatibility

Bosch LSU 4.9, 5 wire sensor

Basic specifications

Inputs/Outputs

1 x Bosch LSU 4.9 Lambda sensor

Power supply voltage 11 V - 16 V

Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A - 1 A and up to 2 A on startup)

Communications

1 x CAN at 1 Mbit/sec

Connectors

1 x 4 pin male DTM connector (power/CAN)

1 x mating connector for Bosch LSU 4.9 sensor

Physical

Dimensions 38 x 26 x 14 mm excluding wiring looms and connectors

Weight 62 grams

Maximum ambient temperature 100 DegC
