MC03-ASR606-05SB-HE - Deutsch Autosport ASR Rally Micro Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Sockets Standard

MC03-ASR606-05SB-HE - Deutsch Autosport ASR Rally Micro Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Sockets Standard
MC03-ASR606-05SB-HE - Deutsch Autosport ASR Rally Micro Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Sockets Standard
  • Stock: Available
  • Model: MC03-ASR606-05SB-HE
  • Weight: 12.00g
  • SKU: MC03-ASR606-05SB-HE
  • UPC: MC03-ASR606-
  • MPN: ASR606-05SB-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£37.14
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport ASR Rally Micro Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Sockets Standard

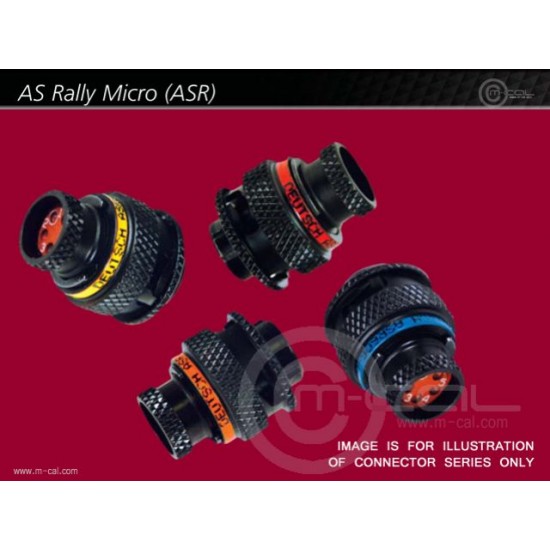

The Deutsch Autosport AS RALLY MICRO (ASR) series connector is an evolution of the AS MicroLite HE, the AS Rally Micro has been created with direct input from World Rally Teams. A wider coupling ring and more knurling enables mechanics wearing gloves to get a better grip when connecting and disconnecting in severe environments (snow, ice and mud).

Features

  • 5-Way Autosport Rally Micro (ASR) Series Connector
  • Body Style 6 (Free plug) With Sockets
  • Shell Size 6, Contact Arrangement 06-05
  • B Keyway-Blue Band
  • 5x 23awg Sockets (Accepts 28,26,24,22awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-8604935-S
  • Connector Overall Dimensions (Excluding Boot) Length 19x15mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro Rally
    Connector Series ASR
    Manufacturer TE
    Connector Housing Attributes
    Pin Pattern 06-05
    Pins / Sockets S
    Shell Size 06
    Total Contacts 5
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.60
    Housing Code 6
    Housing Style 6 - Free plug
    Keyway Code B
    Durability Cycles 500
    Dielectric Voltage 1000
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 3
    Primary Contacts Quantity 5
    Primary Contacts Size (awg) 23
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Autosport Pro-Cap, for Shell Size 06 Recepticals ASL Autosport Pro-Cap, for Shell Size 06 Recepticals ASL
    £19.25
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellermann Heat Shrink Boot 90deg for ASL Shell 06 & AS Comp Hellermann Heat Shrink Boot 90deg for ASL Shell 06 & AS Comp
    £8.53
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for ASL Shell 06 & ASC Hellermann Heat Shrink Boot Straight for ASL Shell 06 & ASC
    £5.73
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector Shell Size 06 ASC, ASL Raychem Boot 90Deg AS Connector Shell Size 06 ASC, ASL
    £7.37
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 06 ASC, ASL Raychem Boot Straight AS Connector Shell Size 06 ASC, ASL
    £7.46
    Mating Connector Options
    6 - Free plug
    Deutsch Autosport ASR Rally Micro Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard Deutsch Autosport ASR Rally Micro Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard
    £30.21
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 22g Pins Autosport Connector Filler Plugs for 22g Pins
    £0.56
    Spare Sockets
    Conn AutoS ASL Micro Lite Size 23 Spare Sockets Conn AutoS ASL Micro Lite Size 23 Spare Sockets
    £2.13
    Autosport Connector Spare Socket ASL, AS Micro Autosport Connector Spare Socket ASL, AS Micro
    £2.13
    Connector Autosport Terminal Socket ASL, AS Micro 10 Bag Connector Autosport Terminal Socket ASL, AS Micro 10 Bag
    £20.21
    Tooling
    Contact Positioner
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    Tooling Contacts Type 2
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
