Deutsch Autosport ASDD Double Density Connector 9 Way Shell Size 06 Pin Layout 06-09 Style 1 Inline Receptacle Red N Keyway Sockets Standard

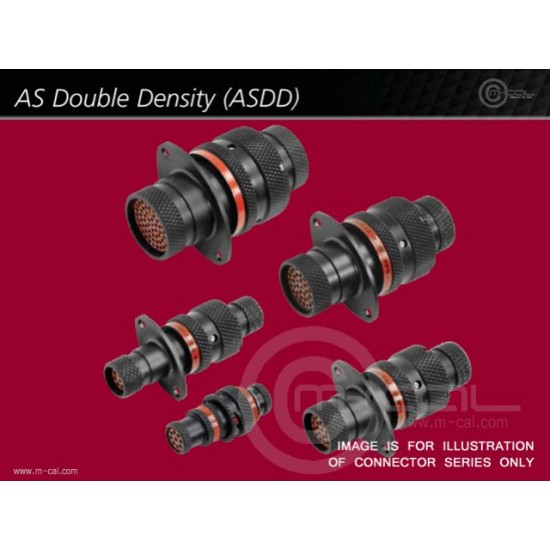

The Deutsch Autosport AS DOUBLE DENSITY (ASDD) series connector is the next generation connector technology developed by Deutsch, which brings together high density and high performance, in line with racing teams using smaller wire sizes. The AS Double Density range allows almost double the number of contacts to be packaged in the same shell as compared to the standard AS Series.

Features

  • 9-Way Autosport Double Density (ASDD) Series Connector
  • Body Style 1 (Inline receptacle) With Sockets
  • Shell Size 6, Contact Arrangement 06-09
  • N Keyway-Red Band
  • 9x 24awg Sockets (Accepts 30,28,26,24awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-8605704-S
  • Connector Overall Dimensions (Excluding Boot) Length 20x11mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Material
    Housing Finish Black Zinc
    Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Double Density
    Connector Series ASDD
    Manufacturer TE
    Connector Housing Attributes
    Housing Insert Material Thermoplastic
    Housing Material High Strength Aluminum Alloy
    Housing Seal Material Fluorinated Silicone
    Keyway Colour N - Red
    Pin Pattern 06-09
    Pins / Sockets S
    Shell Size 06
    Total Contacts 9
    Wire Sealing Max (mm3) 1.02
    Wire Sealing Min (mm3) 0.56
    Housing Code 1
    Housing Style 1 - Inline Receptacle
    Keyway Code N
    Durability Cycles 500
    Dielectric Voltage 750
    Connector Contacts Data - Primary
    Primary Contacts Material Gold Plated Copper Alloy
    Primary Contacts Max Amps (A) ** 3
    Primary Contacts Quantity 9
    Primary Contacts Size (awg) 24
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Autosport Pro-Cap, for Shell Size 06 Free Plugs Autosport Pro-Cap, for Shell Size 06 Free Plugs
    £19.56
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellermann Heat Shrink Boot 90deg for ASL Shell 06 & AS Comp Hellermann Heat Shrink Boot 90deg for ASL Shell 06 & AS Comp
    £8.53
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for ASL Shell 06 & ASC Hellermann Heat Shrink Boot Straight for ASL Shell 06 & ASC
    £5.73
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector Shell Size 06 ASC, ASL Raychem Boot 90Deg AS Connector Shell Size 06 ASC, ASL
    £7.37
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 06 ASC, ASL Raychem Boot Straight AS Connector Shell Size 06 ASC, ASL
    £7.46
    Mating Connector Options
    6 - Free plug
    Deutsch Autosport ASDD Double Density Connector 9 Way Shell Size 06 Pin Layout 06-09 Style 6 Free plug Red N Keyway Pins Standard Deutsch Autosport ASDD Double Density Connector 9 Way Shell Size 06 Pin Layout 06-09 Style 6 Free plug Red N Keyway Pins Standard
    £59.22
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 20g Pins Autosport Connector Filler Plugs for 20g Pins
    £0.56
    Spare Sockets
    Autosport Connector Spare Socket ASX 5way, ASU 5Way Autosport Connector Spare Socket ASX 5way, ASU 5Way
    £2.02
    Connector Autosport Terminal Socket ASX 5way, ASU 5Way Connector Autosport Terminal Socket ASX 5way, ASU 5Way
    £19.25
    Tooling
    Contact Positioner
    Autosport Crimp Tool Positioner for ASDD Sockets Autosport Crimp Tool Positioner for ASDD Sockets
    £142.49
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    Deutsch Autosport 24-30g De-pinning Tool (Plastic) Deutsch Autosport 24-30g De-pinning Tool (Plastic)
    £3.26
    Tooling Contacts Type 2
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
