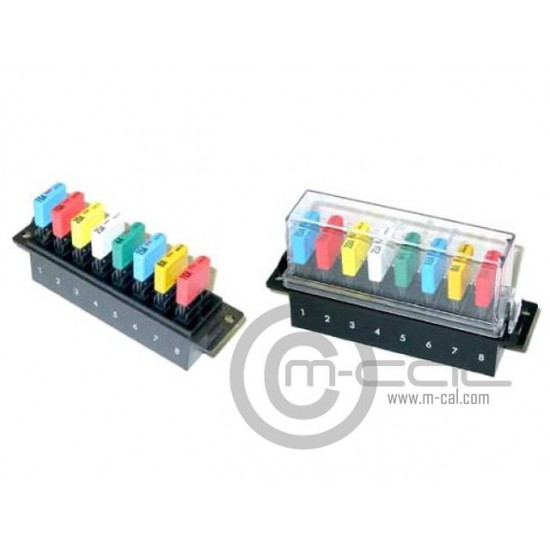

MC20-31610-8W - ETA 8 Way Base for 1610 Series Circuit Breakers

This base for the 1610 series circuit breaker will accommodate up to 8 circuit breakers of the same or mixed amperage ratings. The range is available from 6amps to 30 amps with the amperage rating marked on the top of each circuit breaker. This model of circuit breaker is available as reset only, manual release with colour coded lever or auto reset. The base will mount into a 96.5 x 27.0 mm panel cut out and is retained by one 4mm screw at each end. The polarised detachable lid is retained in place by a plastic clip at each end, which is part of the lid moulding. The edge flange has a seal set in a groove, which gives the base a rating of IP54 when mounted in a panel. Each circuit breaker position is fitted with two 6.3 x 0.8mm spade terminals on the input and output for cable connections, which are accessible from the rear of the panel after the base is installed.
