Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 6 Free plug Red N Keyway Sockets Standard

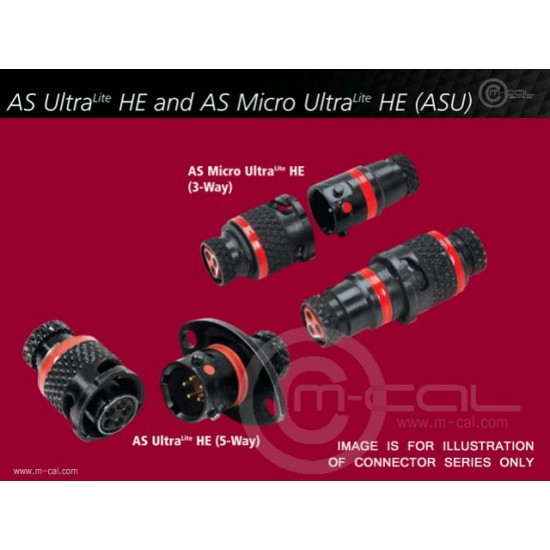

The Deutsch Autosport AS UltraLite HE connector is a 5-way connector offers teams the smallest, lightest package for 5 wires. The Deutsch Autosport AS Micro UltraLite HE 3-way is the shortest, lightest AS connector for three wires and offers a solution where space is at its most restrictive.

Features

  • 5-Way Autosport UltraLite (ASU) Series Connector
  • Body Style 6 (Free plug) With Sockets
  • Shell Size 3, Contact Arrangement 03-05
  • N Keyway-Red Band
  • 5x 24awg Sockets (Accepts 30,28,26,24awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-8605704-S
  • Connector Overall Dimensions (Excluding Boot) Length 18x13mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro UltraLITE HE
    Connector Series ASU
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour N - Red
    Pin Pattern 03-05
    Pins / Sockets S
    Shell Size 03
    Total Contacts 5
    Wire Sealing Max (mm3) 1.02
    Wire Sealing Min (mm3) 0.56
    Housing Code 6
    Housing Style 6 - Free plug
    Keyway Code N
    Durability Cycles 500
    Dielectric Voltage 1000
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 3
    Primary Contacts Quantity 5
    Primary Contacts Size (awg) 24
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Autosport Pro-Cap, for Shell Size 03 Free Plugs Autosport Pro-Cap, for Shell Size 03 Free Plugs
    £14.56
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for ASU Shell 03 Hellermann Heat Shrink Boot Straight for ASU Shell 03
    £5.59
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX
    £8.13
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 02-03 ASU,ASU Raychem Boot Straight AS Connector Shell Size 02-03 ASU,ASU
    £7.71
    Mating Connector Options
    0 - Flange Receptacle
    Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 0 Flange Receptacle Red N Keyway Pins Standard Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 0 Flange Receptacle Red N Keyway Pins Standard
    £31.22
    1 - Inline Receptacle
    Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 1 Inline Receptacle Red N Keyway Pins Standard Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 1 Inline Receptacle Red N Keyway Pins Standard
    £29.93
    2 - PCB Receptacle Flange Mount
    Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
    £40.03
    6 - Free plug
    Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 6 Free plug Red N Keyway Pins Standard Deutsch Autosport ASU UltraLITE HE Connector 5 Way Shell Size 03 Pin Layout 03-05 Style 6 Free plug Red N Keyway Pins Standard
    £31.32
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 20g Pins Autosport Connector Filler Plugs for 20g Pins
    £0.56
    Spare Sockets
    Autosport Connector Spare Socket ASX 5way, ASU 5Way Autosport Connector Spare Socket ASX 5way, ASU 5Way
    £2.02
    Connector Autosport Terminal Socket ASX 5way, ASU 5Way Connector Autosport Terminal Socket ASX 5way, ASU 5Way
    £19.25
    Tooling
    Contact Positioner
    Autosport Crimp Tool Positioner for ASDD Sockets Autosport Crimp Tool Positioner for ASDD Sockets
    £142.49
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    Deutsch Autosport 24-30g De-pinning Tool (Plastic) Deutsch Autosport 24-30g De-pinning Tool (Plastic)
    £3.26
