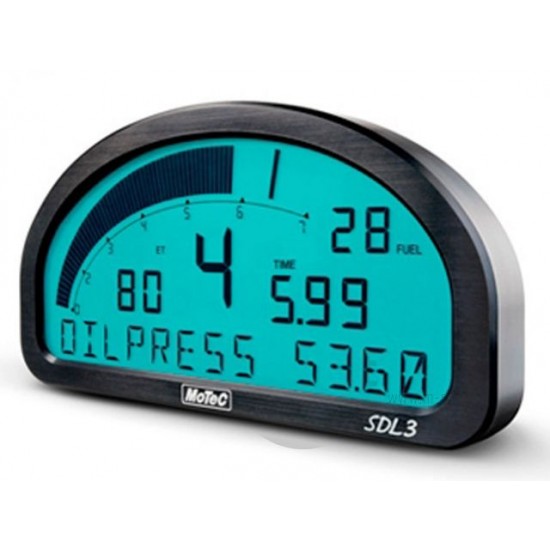

MC35-318018 - MoTeC SDL3 Sport Dash Logger Backlit (non logging)

The MoTeC Sport Dash Logger SDL3-Non Logging, Backlit comes as a combined display and powerful control device. With the addition of the Data Logging upgrades it becomes a fully programmable data logger with 16 or 120MB memory. The display layout is fully configurable to show a multitude of channels, alarms, lap times, fuel calculations and more.

Four aux outputs are available to control external devices.

Basic Spec

Logging

Optional 16MB or 120MB logging

Ethernet download

Display

70 segment bargraph

13 digit alphanumeric text bar

48 user-defined message lines

3 pages, Practice, Warm-Up and Race

Inputs

8xAnalogue voltage inputs

4xAnalogue temp

2xDigital

4xSpeed

Compatible with two E888 expanders

Outputs

4xPWM outputs

Internal Sensors

3-axis G

Dash temperature

Sensor supply voltage

Vbat

Comms

2xCAN

1xRS232

Physical

Dimensions 180x91x18mm

Weight 385g

37 pin As connector (Not Included
