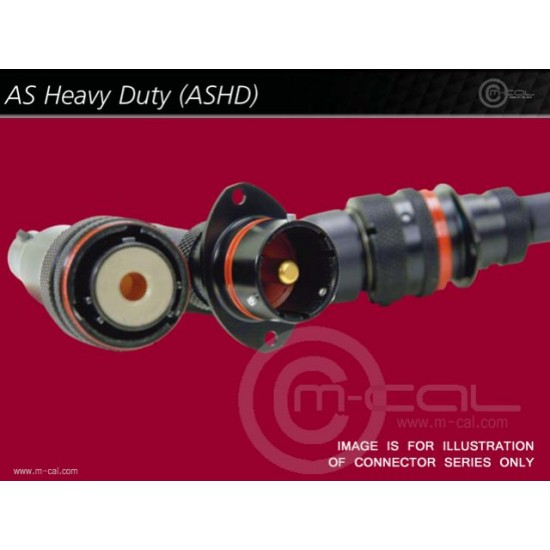

MC03-ASHD014-1SN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 0 Flange Receptacle Red N Keyway Sockets C25

MC03-ASHD014-1SN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 0 Flange Receptacle Red N Keyway Sockets C25
MC03-ASHD014-1SN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 0 Flange Receptacle Red N Keyway Sockets C25
MC03-ASHD014-1SN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 0 Flange Receptacle Red N Keyway Sockets C25
MC03-ASHD014-1SN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 0 Flange Receptacle Red N Keyway Sockets C25
MC03-ASHD014-1SN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 0 Flange Receptacle Red N Keyway Sockets C25
  • Stock: Available
  • Model: MC03-ASHD014-1SN-C25
  • Weight: 40.00g
  • SKU: MC03-ASHD014-1SN-C25
  • UPC: MC03-ASHD014
  • MPN: ASHD014-1SN-C25
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£123.19
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 0 Flange Receptacle Red N Keyway Sockets C25

The Deutsch Autosport AS HEAVY DUTY (ASHD) series connector is a single way power connector designed specifically for autosport high current applications, the Deutsch AS Heavy Duty is ideally suited to battery, alternator and starter motor applications. Specially designed low insertion/extraction force contacts ensure maximum performance in extreme heat and vibration conditions

Features

  • 1-Way Autosport Heavy Duty (ASHD) Series Connector
  • Body Style 0 (2 hole flanged receptacle) With Sockets
  • Shell Size 14, Contact Arrangement 14-1
  • N Keyway-Red Band
  • 1x 25mmawg Sockets (Accepts 4awg Wire) Max 150A
  • For Replacement Contacts Use Part Number MC05-3605654-S
  • Connector Overall Dimensions (Excluding Boot) Length 33x38mm
  • Includes connector body and contact

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Heavy Duty
    Connector Series ASHD
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour N - Red
    Modification Code C25
    Pin Pattern 14-1
    Pins / Sockets S
    Shell Size 14
    Total Contacts 1
    Housing Code 0
    Housing Style 0 - Flange Receptacle
    Keyway Code N
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 200
    Primary Contacts Quantity 1
    Primary Contacts Size (awg) 4
    Primary Contacts Wire Size (mm) 25

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Gasket
    Deutsch Autosport AS Connector Gasket Shell Size 14 All Keyways Standard Deutsch Autosport AS Connector Gasket Shell Size 14 All Keyways Standard
    £10.02
    Nut Plate
    Deutsch Autosport AS Connector Nut Plate Shell Size 14 All Keyways Standard Deutsch Autosport AS Connector Nut Plate Shell Size 14 All Keyways Standard
    £16.21
    Pro Cap
    Deutsch Autosport AS Connector Pro Cap Series Shell Size 14 Style 9 Pro Cap For Receptacle All Keyways Standard Deutsch Autosport AS Connector Pro Cap Series Shell Size 14 Style 9 Pro Cap For Receptacle All Keyways Standard
    £35.90
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellermann Heat Shrink Boot 90deg for AS Shell 14 Hellermann Heat Shrink Boot 90deg for AS Shell 14
    £8.39
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for AS Shell 14 Hellermann Heat Shrink Boot Straight for AS Shell 14
    £7.29
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector Shell Size 12 - 14 Raychem Boot 90Deg AS Connector Shell Size 12 - 14
    £11.46
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 12 - 14 Raychem Boot Straight AS Connector Shell Size 12 - 14
    £9.89
    Mating Connector Options
    6 - Free plug
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins C16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins C16
    £93.53
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins C25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins C25
    £93.53
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins C35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins C35
    £93.53
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins 16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins 16
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins 25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins 25
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins 35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins 35
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins S16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins S16
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins S25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins S25
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins S35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Pins S35
    £0.00
    Spare Contacts
    Spare Sockets
    Autosport Connector Spare Hyperboloid Standard Socket ASHD Socket 16mm Cable Autosport Connector Spare Hyperboloid Standard Socket ASHD Socket 16mm Cable
    £0.00
    Autosport Connector Spare Hyperboloid Standard Socket ASHD Socket 25mm Cable Autosport Connector Spare Hyperboloid Standard Socket ASHD Socket 25mm Cable
    £0.00
    Tooling
    Contact Positioner
    Connector Autosport Toolin Crimp ASHD Jaws 25mm Connector Autosport Toolin Crimp ASHD Jaws 25mm
    £144.45
    Crimp Tool
    Connector Autosport Toolin Crimp ASHD Crimp Tool Connector Autosport Toolin Crimp ASHD Crimp Tool
    £0.00
    Insert Extract Tool
    Connector Autosport Toolin Extract Tool ASHD Connector Autosport Toolin Extract Tool ASHD
    £0.00
