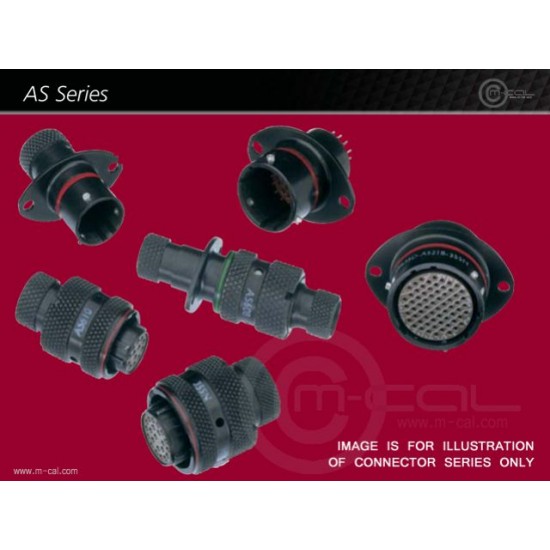

MC03-AS214-35PN - Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard

MC03-AS214-35PN - Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
MC03-AS214-35PN - Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
MC03-AS214-35PN - Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
MC03-AS214-35PN - Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
MC03-AS214-35PN - Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
MC03-AS214-35PN - Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
MC03-AS214-35PN - Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
  • Stock: Available
  • Model: MC03-AS214-35PN
  • Weight: 40.00g
  • SKU: MC03-AS214-35PN
  • UPC: MC03-AS214-3
  • MPN: AS214-35PN-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£81.68
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard

The Deutsch Autosport AS SERIES connector was developed from the MIL-C-38999 Series 1.5 (Eurofighter connector), the AS Series was the first range of high specification connectors designed specifically for the autosport market. The AS Series offers weight and space saving over standard military designs and is available in a wide variety of options, with medium and high density arrangements, up to 128 ways,4 shell styles, and 5 keyway orientations.

Features

  • 37-Way Autosport AS Series Connector
  • Body Style 2 (2 hole flanged receptacle with PCB contacts) With Pins
  • Shell Size 14, Contact Arrangement 14-35
  • N Keyway-Red Band
  • 37x 22awg Pins (Accepts 26,24,22awg Wire) Max 5.0A
  • For Replacement Contacts Use Part Number MC05-3603542-P-PCB
  • Connector Overall Dimensions (Excluding Boot) Length 28x38mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport
    Connector Series AS
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour N - Red
    Pin Pattern 14-35
    Pins / Sockets P
    Shell Size 14
    Total Contacts 37
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.76
    Housing Code 2
    Housing Style 2 - PCB Receptacle Flange Mount
    Keyway Code N
    Durability Cycles 500
    Dielectric Voltage 1300
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 5
    Primary Contacts Quantity 37
    Primary Contacts Size (awg) 22
    Temperature
    Temperature Operating Max (Deg C) +175
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Gasket
    Deutsch Autosport AS Connector Gasket Shell Size 14 All Keyways Standard Deutsch Autosport AS Connector Gasket Shell Size 14 All Keyways Standard
    £5.50
    Nut Plate
    Deutsch Autosport AS Connector Nut Plate Shell Size 14 All Keyways Standard Deutsch Autosport AS Connector Nut Plate Shell Size 14 All Keyways Standard
    £7.18
    Pro Cap
    Deutsch Autosport AS Connector Pro Cap Series Shell Size 14 Style 9 Pro Cap For Receptacle All Keyways Standard Deutsch Autosport AS Connector Pro Cap Series Shell Size 14 Style 9 Pro Cap For Receptacle All Keyways Standard
    £15.39
    Mating Connector Options
    6 - Free plug
    MoTeC Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 6 Free plug Red N Keyway Sockets Standard MoTeC Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 6 Free plug Red N Keyway Sockets Standard
    £88.81
    Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 6 Free plug Red N Keyway Sockets Standard Deutsch Autosport AS Connector 37 Way Shell Size 14 Pin Layout 14-35 Style 6 Free plug Red N Keyway Sockets Standard
    £81.08
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 22g Pins Autosport Connector Filler Plugs for 22g Pins
    £0.56
    Spare Pins
    Connector Autosport Terminal Pin AS 22awg (Bag of 10) Connector Autosport Terminal Pin AS 22awg (Bag of 10)
    £4.58
    Tooling
    Contact Positioner
    Autosport Crimp Tool Positioner for 22g Pins Autosport Crimp Tool Positioner for 22g Pins
    £81.38
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
