MC03-ASU603-03PC-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Pins Standard

MC03-ASU603-03PC-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Pins Standard
MC03-ASU603-03PC-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Pins Standard
MC03-ASU603-03PC-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Pins Standard
MC03-ASU603-03PC-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Pins Standard
MC03-ASU603-03PC-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Pins Standard
  • Stock: Available
  • Model: MC03-ASU603-03PC-HE
  • Weight: 8.00g
  • SKU: MC03-ASU603-03PC-HE
  • UPC: MC03-ASU603-
  • MPN: ASU603-03PC-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£40.04
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Pins Standard

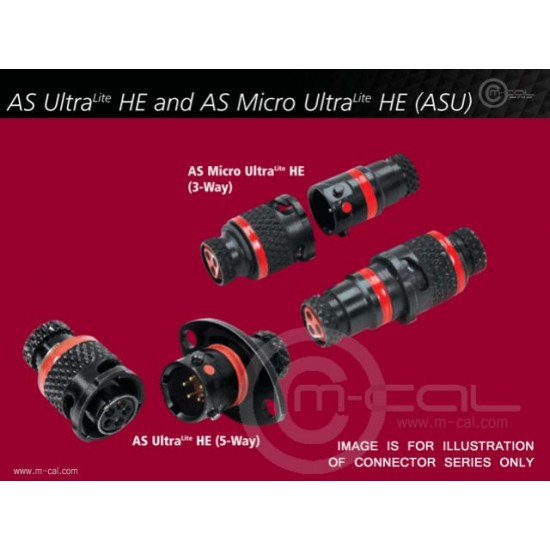

The Deutsch Autosport AS UltraLite HE connector is a 5-way connector offers teams the smallest, lightest package for 5 wires. The Deutsch Autosport AS Micro UltraLite HE 3-way is the shortest, lightest AS connector for three wires and offers a solution where space is at its most restrictive.

Features

  • 3-Way Autosport UltraLite (ASU) Series Connector
  • Body Style 6 (Free plug) With Pins
  • Shell Size 3, Contact Arrangement 03-03
  • C Keyway-Orange Band
  • 3x 22awg Pins (Accepts 26,24,22awg Wire) Max 5.0A
  • For Replacement Contacts Use Part Number MC05-860494631-P
  • Connector Overall Dimensions (Excluding Boot) Length 18x13mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro UltraLITE HE
    Connector Series ASU
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour C - Orange
    Pin Pattern 03-03
    Pins / Sockets P
    Shell Size 03
    Total Contacts 3
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.76
    Housing Code 6
    Housing Style 6 - Free plug
    Keyway Code C
    Durability Cycles 500
    Dielectric Voltage 1500
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 5
    Primary Contacts Quantity 3
    Primary Contacts Size (awg) 22
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Autosport Pro-Cap, for Shell Size 03 Free Plugs Autosport Pro-Cap, for Shell Size 03 Free Plugs
    £19.56
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for ASU Shell 03 Hellermann Heat Shrink Boot Straight for ASU Shell 03
    £5.59
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX
    £8.13
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 02-03 ASU,ASU Raychem Boot Straight AS Connector Shell Size 02-03 ASU,ASU
    £7.71
    Mating Connector Options
    0 - Flange Receptacle
    Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 0 Flange Receptacle Orange C Keyway Sockets Standard Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 0 Flange Receptacle Orange C Keyway Sockets Standard
    £36.12
    1 - Inline Receptacle
    Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Orange C Keyway Sockets Standard Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Orange C Keyway Sockets Standard
    £38.65
    2 - PCB Receptacle Flange Mount
    Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 2 PCB Receptacle Flange Mount Orange C Keyway Sockets Standard Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 2 PCB Receptacle Flange Mount Orange C Keyway Sockets Standard
    £40.64
    6 - Free plug
    Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Sockets Standard Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 6 Free plug Orange C Keyway Sockets Standard
    £43.28
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 22g Pins Autosport Connector Filler Plugs for 22g Pins
    £0.56
    Spare Pins
    Autosport Connector Spare Pin ASX 3way, ASU 3way, ASC Autosport Connector Spare Pin ASX 3way, ASU 3way, ASC
    £2.58
    Connector Autosport Terminal Pin ASX 3way, ASU 3way, ASC Connector Autosport Terminal Pin ASX 3way, ASU 3way, ASC
    £24.31
    Tooling
    Contact Positioner
    Autosport Crimp Tool Positioner for ASC / ASU 3 way Sockets Autosport Crimp Tool Positioner for ASC / ASU 3 way Sockets
    £0.00
    Autosport Crimp Tool Positioner for ASC / ASU 3 way Pins Autosport Crimp Tool Positioner for ASC / ASU 3 way Pins
    £142.49
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    Tooling Contacts Type 2
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
