MC07-3342A058 - Raychem Heat Shrink Boot 45Deg EqualBreakout H26.9J26.9K13.7

MC07-3342A058 - Raychem Heat Shrink Boot 45Deg EqualBreakout H26.9J26.9K13.7
MC07-3342A058 - Raychem Heat Shrink Boot 45Deg EqualBreakout H26.9J26.9K13.7
  • Stock: Available
  • Model: MC07-3342A058
  • Weight: 138.00g
  • SKU: MC07-3342A058
  • UPC: MC07-3342A05
  • MPN: 342A058-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£80.45
Add to Cart
Ask Question
Add to Wish List Compare this Product

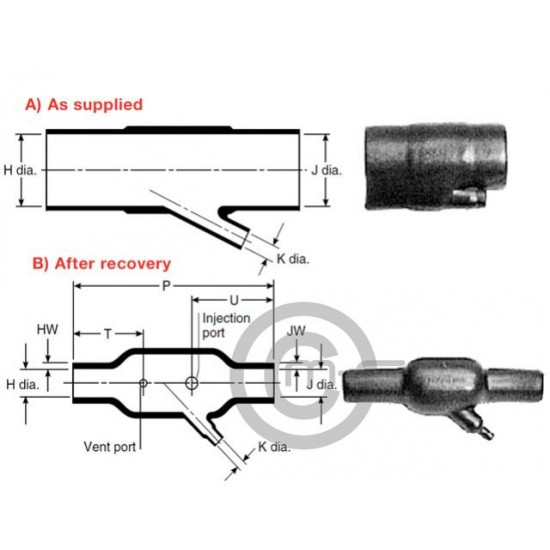

Raychem Heat Shrink Boot 45Deg EqualBreakout H26.9J26.9K13.7



Raychem Heat Shrink Boot 45Deg Equal Breakout 342A058

  • Cable Entry (H) As Supplied 55.6mm - Fully Recovered 26.9mm
  • Cable Entry (J) As Supplied 55.6mm - Fully Recovered 26.9mm
  • Cable Entry (K) As Supplied 26.9mm - Fully Recovered 13.7mm

    Based on heatshrink technology the Raychem 342A series heat-shrinkable boot offers mechanical protection sealing, protecting the joints and splicing offering mechanical strain relief. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

    Typical Features & Benefits
    • Operating Temperature -75ºC to +150ºC
    • Excellent chemical and abrasion resistance
    • Long-term, high temperature fluid resistance
    • Minimum Shrink Temperature +135ºC
    • Recommended Installation Temperature +175ºC
    • Colour-Black
    • Connector Housing Attributes
    Total Contacts 0
