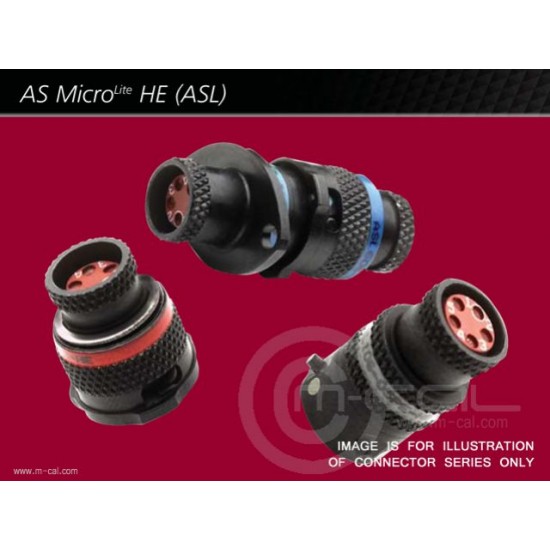

Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 2 PCB Receptacle Flange Mount Green D Keyway Sockets Standard

The Deutsch Autosport AS MICROLite HE (ASL) series connector is in excess of 30% lighter than the origin al AS Micro HE and approximately 8mm shorter, whilst still retaining all the critical features including the renowned Deutsch #23 contacts. The AS MicroLite HE is fully intermateable with the AS Micro HE.

Features

  • 5-Way Autosport MicroLite (ASL) Series Connector
  • Body Style 2 (2 hole flanged receptacle with PCB contacts) With Sockets
  • Shell Size 6, Contact Arrangement 06-05
  • D Keyway-Green Band
  • 5x 23awg Sockets (Accepts 28,26,24,22awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-8604019LNG-S-PCB
  • Connector Overall Dimensions (Excluding Boot) Length 20x23mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro LITE HE
    Connector Series ASL
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour D - Green
    Pin Pattern 06-05
    Pins / Sockets S
    Shell Size 06
    Total Contacts 5
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.60
    Housing Code 2
    Housing Style 2 - PCB Receptacle Flange Mount
    Keyway Code D
    Durability Cycles 500
    Dielectric Voltage 1000
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 3
    Primary Contacts Quantity 5
    Primary Contacts Size (awg) 23
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Gasket
    Deutsch Autosport AS Connector Gasket Shell Size 06 All Keyways Standard Deutsch Autosport AS Connector Gasket Shell Size 06 All Keyways Standard
    £12.20
    Nut Plate
    Deutsch Autosport AS Connector Nut Plate Shell Size 06 All Keyways Standard Deutsch Autosport AS Connector Nut Plate Shell Size 06 All Keyways Standard
    £13.35
    Pro Cap
    Autosport Pro-Cap, for Shell Size 06 Free Plugs Autosport Pro-Cap, for Shell Size 06 Free Plugs
    £19.56
    Mating Connector Options
    6 - Free plug
    Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Green D Keyway Pins Standard Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Green D Keyway Pins Standard
    £35.94
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 22g Pins Autosport Connector Filler Plugs for 22g Pins
    £0.56
    Spare PCB Sockets
    Connector Autosport Terminal Socket PCB ASL, AS Micro (10 Ba Connector Autosport Terminal Socket PCB ASL, AS Micro (10 Ba
    £0.00
    Spare Sockets
    Conn AutoS ASL Micro Lite Size 23 Spare Sockets Conn AutoS ASL Micro Lite Size 23 Spare Sockets
    £2.13
    Autosport Connector Spare Socket ASL, AS Micro Autosport Connector Spare Socket ASL, AS Micro
    £2.13
    Connector Autosport Terminal Socket ASL, AS Micro 10 Bag Connector Autosport Terminal Socket ASL, AS Micro 10 Bag
    £20.21
    Tooling
    Contact Positioner
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
