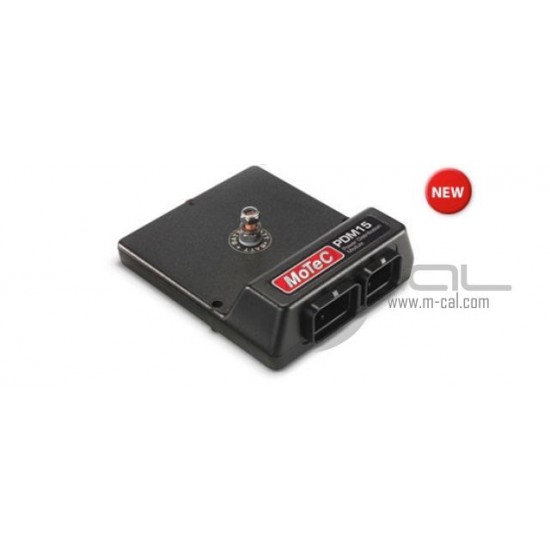

MC32-314104 - MoTeC PDM 15

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.

Basic specifications

Outputs

• 8 x 20 A outputs;20 A continuous, 115 A transient (typical)

• 7 x 8 A outputs;8 A continuous, 60 A transient (typical)


  Inputs

  • 16 x Switch inputs


    Communications


    • 1 x CAN


      Diagnostic Information

      • Output current and voltages

      • Input voltages


      • Error status


        Physical

        • Connectors

          • 1 x 34 pin waterproof connector

          • 1 x 26 pin waterproof connector

          • 1 x M6 stud


          • Case size 108 x 128 x 39 mm


          • Weight 260 gram
