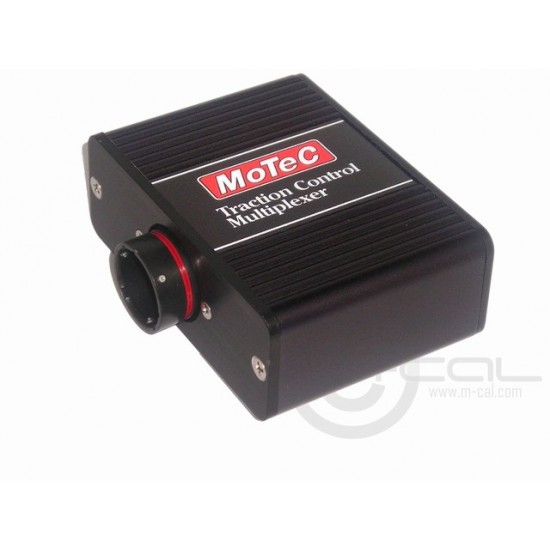

MC32-314005 - MoTeC T-C Multiplexer Mil Spec

The MoTeC Traction Control Multiplexer goes between the ECU and the wheel speed sensors It gathers the speed information from the 4 wheels and calculates the ground speed from the fastest rolling wheel and speed difference from the driven wheels. The MoTeC Traction Control Multiplexer is very useful in allowing 4 separate speed channels to be brought into one input of the ECU. Uses reverse technology as compared with the Ignition Expander - Multi Channels in - One Channel out. Specifications - Dimensions 4 X 1.5 X 2.75 - Weight 0.5 pound - Connector 18 Way Econoseal - Inputs 4 wheelspeed 1 disable switch. Mil Spec Traction Control Multiplexer (also needs mating connector part no MC03-368087 )
