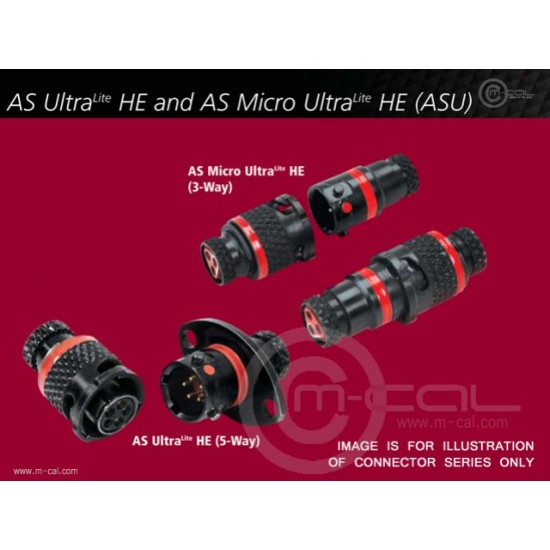

MC03-ASU103-03PD-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Green D Keyway Pins Standard

MC03-ASU103-03PD-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Green D Keyway Pins Standard
MC03-ASU103-03PD-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Green D Keyway Pins Standard
MC03-ASU103-03PD-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Green D Keyway Pins Standard
MC03-ASU103-03PD-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Green D Keyway Pins Standard
MC03-ASU103-03PD-HE - Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Green D Keyway Pins Standard
  • Stock: Available
  • Model: MC03-ASU103-03PD-HE
  • Weight: 8.00g
  • SKU: MC03-ASU103-03PD-HE
  • UPC: MC03-ASU103-
  • MPN: ASU103-03PD-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£33.34
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport ASU Micro UltraLITE HE Connector 3 Way Shell Size 03 Pin Layout 03-03 Style 1 Inline Receptacle Green D Keyway Pins Standard

The Deutsch Autosport AS UltraLite HE connector is a 5-way connector offers teams the smallest, lightest package for 5 wires. The Deutsch Autosport AS Micro UltraLite HE 3-way is the shortest, lightest AS connector for three wires and offers a solution where space is at its most restrictive.

Features

  • 3-Way Autosport UltraLite (ASU) Series Connector
  • Body Style 1 (Inline receptacle) With Pins
  • Shell Size 3, Contact Arrangement 03-03
  • D Keyway-Green Band
  • 3x 22awg Pins (Accepts 26,24,22awg Wire) Max 5.0A
  • For Replacement Contacts Use Part Number MC05-860494631-P
  • Connector Overall Dimensions (Excluding Boot) Length 18x9mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro UltraLITE HE
    Connector Series ASU
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour D - Green
    Pin Pattern 03-03
    Pins / Sockets P
    Shell Size 03
    Total Contacts 3
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.76
    Housing Code 1
    Housing Style 1 - Inline Receptacle
    Keyway Code D
    Durability Cycles 500
    Dielectric Voltage 1500
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 5
    Primary Contacts Quantity 3
    Primary Contacts Size (awg) 22
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55
