MC07-3342A034 - Raychem Heat Shrink Boot 45Deg EqualBreakout H13.7J13.7K6.1

MC07-3342A034 - Raychem Heat Shrink Boot 45Deg EqualBreakout H13.7J13.7K6.1
MC07-3342A034 - Raychem Heat Shrink Boot 45Deg EqualBreakout H13.7J13.7K6.1
  • Stock: Available
  • Model: MC07-3342A034
  • Weight: 25.00g
  • SKU: MC07-3342A034
  • UPC: MC07-3342A03
  • MPN: 342A034-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£28.58
Add to Cart
Ask Question
Add to Wish List Compare this Product

Raychem Heat Shrink Boot 45Deg EqualBreakout H13.7J13.7K6.1



Raychem Heat Shrink Boot 45Deg Equal Breakout 342A034

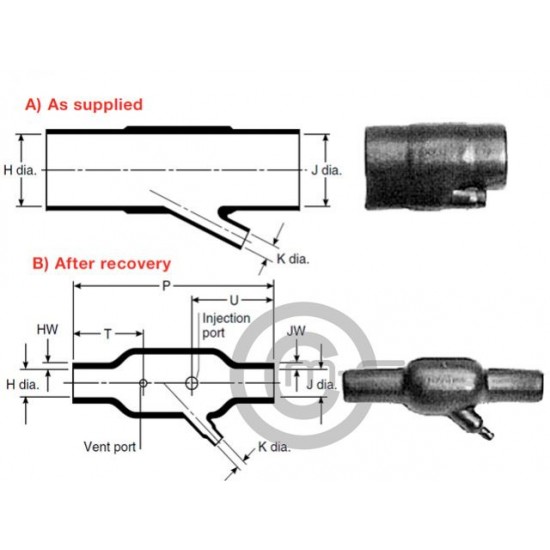

  • Cable Entry (H) As Supplied 26.9mm - Fully Recovered 13.7mm
  • Cable Entry (J) As Supplied 26.9mm - Fully Recovered 13.7mm
  • Cable Entry (K) As Supplied 13.2mm - Fully Recovered 6.1mm

    Based on heatshrink technology the Raychem 342A series heat-shrinkable boot offers mechanical protection sealing, protecting the joints and splicing offering mechanical strain relief. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

    Typical Features & Benefits
    • Operating Temperature -75ºC to +150ºC
    • Excellent chemical and abrasion resistance
    • Long-term, high temperature fluid resistance
    • Minimum Shrink Temperature +135ºC
    • Recommended Installation Temperature +175ºC
    • Colour-Black
    • Connector Housing Attributes
    Total Contacts 0

    Tooling & Related Products

    Image Product Price Quantity Add
    Adhesive
    Adhesive
    Two-part epoxy resin adhesive 50mg Tube Two-part epoxy resin adhesive 50mg Tube
    £44.53
    Raychem RT125 Adhesive 50ml Duo Syringe Raychem RT125 Adhesive 50ml Duo Syringe
    £31.70
    Aplicator Gun
    Aplicator Gun Hellerman Adhesive 50ml Duo Pack Aplicator Gun Hellerman Adhesive 50ml Duo Pack
    £67.35
    Mixer Nozzle
    Suggested Heat Shrink Tubing
    Suggested Heat Shrink Tubing
    Raychem DR25 Heat Shrink Tubing Black 3/4in (19mm) Raychem DR25 Heat Shrink Tubing Black 3/4in (19mm)
    £12.57
    Raychem DR25 Heat Shrink Tubing Black 1/4in (6.4mm) Raychem DR25 Heat Shrink Tubing Black 1/4in (6.4mm)
    £5.98
