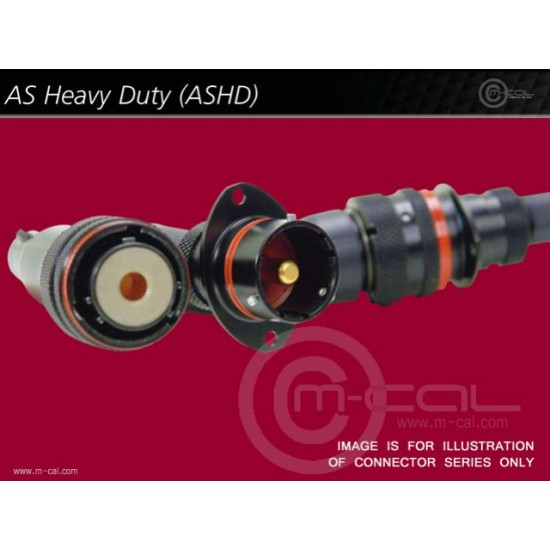

MC03-ASHD114-1PN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25

MC03-ASHD114-1PN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25
MC03-ASHD114-1PN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25
MC03-ASHD114-1PN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25
MC03-ASHD114-1PN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25
MC03-ASHD114-1PN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25
MC03-ASHD114-1PN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25
MC03-ASHD114-1PN-C25 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25
  • Stock: Available
  • Model: MC03-ASHD114-1PN-C25
  • Weight: 40.00g
  • SKU: MC03-ASHD114-1PN-C25
  • UPC: MC03-ASHD114
  • MPN: ASHD114-1PN-C25
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£92.46
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Pins C25

The Deutsch Autosport AS HEAVY DUTY (ASHD) series connector is a single way power connector designed specifically for autosport high current applications, the Deutsch AS Heavy Duty is ideally suited to battery, alternator and starter motor applications. Specially designed low insertion/extraction force contacts ensure maximum performance in extreme heat and vibration conditions

Features

  • 1-Way Autosport Heavy Duty (ASHD) Series Connector
  • Body Style 1 (Inline receptacle) With Pins
  • Shell Size 14, Contact Arrangement 14-1
  • N Keyway-Red Band
  • 1x 25mmawg Pins (Accepts 4awg Wire) Max 150A
  • For Replacement Contacts Use Part Number MC05-3605660-P
  • Connector Overall Dimensions (Excluding Boot) Length 37x28mm
  • Includes connector body and contact

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Heavy Duty
    Connector Series ASHD
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour N - Red
    Modification Code C25
    Pin Pattern 14-1
    Pins / Sockets P
    Shell Size 14
    Total Contacts 1
    Housing Code 1
    Housing Style 1 - Inline Receptacle
    Keyway Code N
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 200
    Primary Contacts Quantity 1
    Primary Contacts Size (awg) 4
    Primary Contacts Wire Size (mm) 25

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Deutsch Autosport AS Connector Pro Cap Series Shell Size 14 Style 9 Pro Cap For Receptacle All Keyways Standard Deutsch Autosport AS Connector Pro Cap Series Shell Size 14 Style 9 Pro Cap For Receptacle All Keyways Standard
    £35.90
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellermann Heat Shrink Boot 90deg for AS Shell 14 Hellermann Heat Shrink Boot 90deg for AS Shell 14
    £8.39
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for AS Shell 14 Hellermann Heat Shrink Boot Straight for AS Shell 14
    £7.29
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector Shell Size 12 - 14 Raychem Boot 90Deg AS Connector Shell Size 12 - 14
    £11.46
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 12 - 14 Raychem Boot Straight AS Connector Shell Size 12 - 14
    £9.89
    Mating Connector Options
    6 - Free plug
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets C16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets C16
    £205.21
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets C25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets C25
    £206.25
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets C35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets C35
    £245.17
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets 16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets 16
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets 25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets 25
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets 35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets 35
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets S16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets S16
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets S25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets S25
    £0.00
    Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets S35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Red N Keyway Sockets S35
    £0.00
    Spare Contacts
    Spare Pins
    Autosport Connector Spare Pin ASHD Pin 25mm Cable Autosport Connector Spare Pin ASHD Pin 25mm Cable
    £13.22
    Tooling
    Contact Positioner
    Connector Autosport Toolin Crimp ASHD Jaws 25mm Connector Autosport Toolin Crimp ASHD Jaws 25mm
    £144.45
    Crimp Tool
    Connector Autosport Toolin Crimp ASHD Crimp Tool Connector Autosport Toolin Crimp ASHD Crimp Tool
    £0.00
    Insert Extract Tool
    Connector Autosport Toolin Extract Tool ASHD Connector Autosport Toolin Extract Tool ASHD
    £0.00
