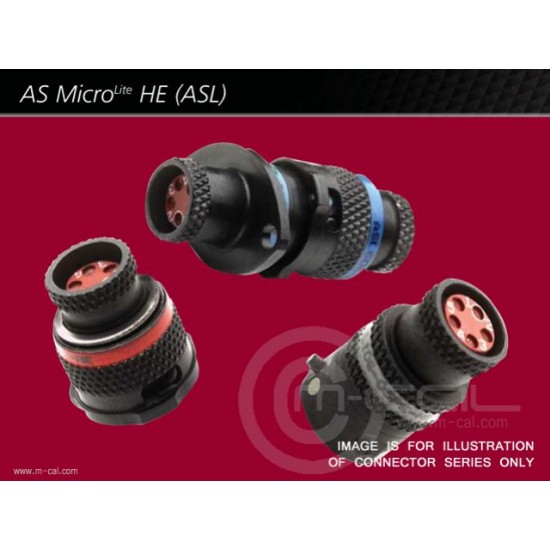

MC03-ASL606-05PB-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard

MC03-ASL606-05PB-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard
MC03-ASL606-05PB-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard
MC03-ASL606-05PB-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard
MC03-ASL606-05PB-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard
MC03-ASL606-05PB-HE - Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard
  • Stock: Available
  • Model: MC03-ASL606-05PB-HE
  • Weight: 12.00g
  • SKU: MC03-ASL606-05PB-HE
  • UPC: MC03-ASL606-
  • MPN: ASL606-05PB-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£28.19
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Pins Standard

The Deutsch Autosport AS MICROLite HE (ASL) series connector is in excess of 30% lighter than the origin al AS Micro HE and approximately 8mm shorter, whilst still retaining all the critical features including the renowned Deutsch #23 contacts. The AS MicroLite HE is fully intermateable with the AS Micro HE.

Features

  • 5-Way Autosport MicroLite (ASL) Series Connector
  • Body Style 6 (Free plug) With Pins
  • Shell Size 6, Contact Arrangement 06-05
  • B Keyway-Blue Band
  • 5x 23awg Pins (Accepts 28,26,24,22awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-860492731-P
  • Connector Overall Dimensions (Excluding Boot) Length 19x14mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro LITE HE
    Connector Series ASL
    Manufacturer TE
    Connector Housing Attributes
    Pin Pattern 06-05
    Pins / Sockets P
    Shell Size 06
    Total Contacts 5
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.60
    Housing Code 6
    Housing Style 6 - Free plug
    Keyway Code B
    Durability Cycles 500
    Dielectric Voltage 1000
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 3
    Primary Contacts Quantity 5
    Primary Contacts Size (awg) 23
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Autosport Pro-Cap, for Shell Size 06 Recepticals ASL Autosport Pro-Cap, for Shell Size 06 Recepticals ASL
    £11.44
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellermann Heat Shrink Boot 90deg for ASL Shell 06 & AS Comp Hellermann Heat Shrink Boot 90deg for ASL Shell 06 & AS Comp
    £8.53
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for ASL Shell 06 & ASC Hellermann Heat Shrink Boot Straight for ASL Shell 06 & ASC
    £5.73
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector Shell Size 06 ASC, ASL Raychem Boot 90Deg AS Connector Shell Size 06 ASC, ASL
    £7.37
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 06 ASC, ASL Raychem Boot Straight AS Connector Shell Size 06 ASC, ASL
    £7.46
    Mating Connector Options
    0 - Flange Receptacle
    Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 0 Flange Receptacle Blue B Keyway Sockets Standard Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 0 Flange Receptacle Blue B Keyway Sockets Standard
    £34.56
    Deutsch Autosport AS MicroLITE HE Fuel Immersible Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 0 Flange Receptacle Blue B Keyway Sockets 952K Deutsch Autosport AS MicroLITE HE Fuel Immersible Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 0 Flange Receptacle Blue B Keyway Sockets 952K
    £0.00
    1 - Inline Receptacle
    Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 1 Inline Receptacle Blue B Keyway Sockets Standard Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 1 Inline Receptacle Blue B Keyway Sockets Standard
    £32.63
    Deutsch Autosport AS MicroLITE HE Fuel Immersible Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 1 Inline Receptacle Blue B Keyway Sockets 952K Deutsch Autosport AS MicroLITE HE Fuel Immersible Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 1 Inline Receptacle Blue B Keyway Sockets 952K
    £0.00
    2 - PCB Receptacle Flange Mount
    Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 2 PCB Receptacle Flange Mount Blue B Keyway Sockets Standard Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 2 PCB Receptacle Flange Mount Blue B Keyway Sockets Standard
    £40.64
    6 - Free plug
    Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Sockets Standard Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Sockets Standard
    £36.24
    Deutsch Autosport AS MicroLITE HE Fuel Immersible Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Sockets 952K Deutsch Autosport AS MicroLITE HE Fuel Immersible Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Blue B Keyway Sockets 952K
    £0.00
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 22g Pins Autosport Connector Filler Plugs for 22g Pins
    £0.56
    Spare Pins
    Conn AutoS ASL Micro Lite Size 23 Spare Pins Conn AutoS ASL Micro Lite Size 23 Spare Pins
    £1.07
    Autosport Connector Spare Pin ASL, AS Micro Autosport Connector Spare Pin ASL, AS Micro
    £1.07
    Connector Autosport Terminal Pin ASL, AS Micro Connector Autosport Terminal Pin ASL, AS Micro
    £9.88
    Tooling
    Contact Positioner
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    Tooling Contacts Type 2
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
