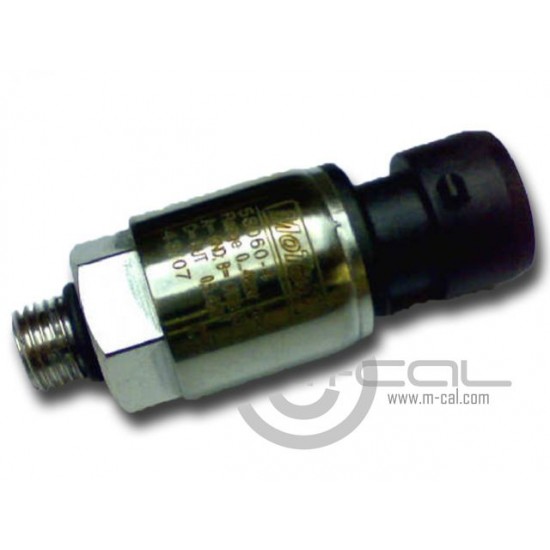

MC12-358062 - MoTeC Fluid Pressure Sensor 170Bar MoTeC Standard Integral Conn

The MoTeC Standard Pressure Sensor is designed for use in harsh Motorsport environments. These sensors provide accurate and reliable pressure measurement in a variety of applications, such as Manifold Pressure, Oil Pressure, Fuel Pressure, and Hydraulic Pressure. The sensor features a 3-8inUNF (–03) pressure fitting and an integral connector, with mating half supplied.

Mounting
The sensor features a –03 pressure fitting and is supplied with a rubber washer. The sensor should not be mounted directly to an engine block or gearbox casing as this may result in vibration induced failure, so therefore it is advisable to remotely mount the sensor in a hose or pipe.

Specification:

• Supply 5V ±0.25V
• Signal 0.5V - 4.5V ratiometric
• Temp Range -40 to 135DegC
• Overpressure 2x no damage
• Housing Stainless Steel
• Fitting 3-8 UNF (-03)
• Mating Connector Included
