MC03-AS110-35PA - Deutsch Autosport AS Connector 13 Way Shell Size 10 Pin Layout 10-35 Style 1 Inline Receptacle Yellow A Keyway Pins Standard

Deutsch Autosport AS Connector 13 Way Shell Size 10 Pin Layout 10-35 Style 1 Inline Receptacle Yellow A Keyway Pins Standard

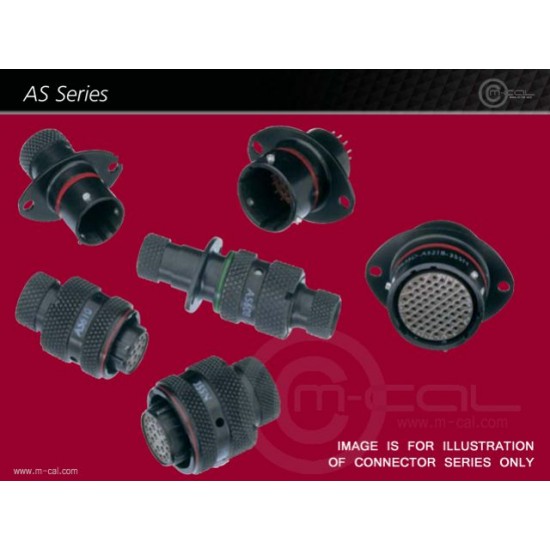

The Deutsch Autosport AS SERIES connector was developed from the MIL-C-38999 Series 1.5 (Eurofighter connector), the AS Series was the first range of high specification connectors designed specifically for the autosport market. The AS Series offers weight and space saving over standard military designs and is available in a wide variety of options, with medium and high density arrangements, up to 128 ways,4 shell styles, and 5 keyway orientations.

Features

• 13-Way Autosport AS Series Connector
• Body Style 1 (Inline receptacle) With Pins
• Shell Size 10, Contact Arrangement 10-35
• A Keyway-Yellow Band
• 13x 22awg Pins (Accepts 26,24,22awg Wire) Max 5.0A
• For Replacement Contacts Use Part Number MC05-83894122-P
• Connector Overall Dimensions (Excluding Boot) Length 34x21mm
• Includes connector body, contacts & Insert-Extract Tool

  See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling
