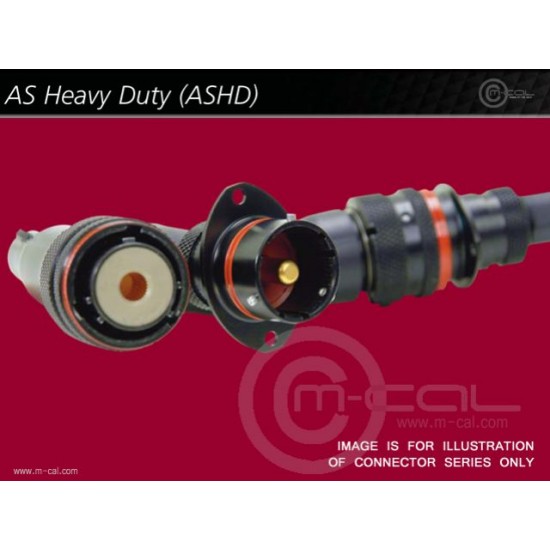

MC03-ASHD114-1SN-C16 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Sockets C16

MC03-ASHD114-1SN-C16 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Sockets C16
MC03-ASHD114-1SN-C16 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Sockets C16
MC03-ASHD114-1SN-C16 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Sockets C16
MC03-ASHD114-1SN-C16 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Sockets C16
MC03-ASHD114-1SN-C16 - Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Sockets C16
  • Stock: Available
  • Model: MC03-ASHD114-1SN-C16
  • Weight: 40.00g
  • SKU: MC03-ASHD114-1SN-C16
  • UPC: MC03-ASHD114
  • MPN: ASHD114-1SN-C16
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£123.19
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 1 Inline Receptacle Red N Keyway Sockets C16

The Deutsch Autosport AS HEAVY DUTY (ASHD) series connector is a single way power connector designed specifically for autosport high current applications, the Deutsch AS Heavy Duty is ideally suited to battery, alternator and starter motor applications. Specially designed low insertion/extraction force contacts ensure maximum performance in extreme heat and vibration conditions

Features

  • 1-Way Autosport Heavy Duty (ASHD) Series Connector
  • Body Style 1 (Inline receptacle) With Sockets
  • Shell Size 14, Contact Arrangement 14-1
  • N Keyway-Red Band
  • 1x 16mmawg Sockets (Accepts 6awg Wire) Max 150A
  • For Replacement Contacts Use Part Number MC05-3605739-S
  • Connector Overall Dimensions (Excluding Boot) Length 37x28mm
  • Includes connector body and contact

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Heavy Duty
    Connector Series ASHD
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour N - Red
    Modification Code C16
    Pin Pattern 14-1
    Pins / Sockets S
    Shell Size 14
    Total Contacts 1
    Housing Code 1
    Housing Style 1 - Inline Receptacle
    Keyway Code N
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 200
    Primary Contacts Quantity 1
    Primary Contacts Size (awg) 4
    Primary Contacts Wire Size (mm) 16
