Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16

Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 16
  • Stock: Email For Price & Availability
  • Model: MC03-ASHD214-1PA-016
  • Weight: 40.00g
  • SKU: MC03-ASHD214-1PA-016
  • UPC: MC03-ASHD214
  • MPN: ASHD214-1PA-016
£0.00
Manufacturer
Brand Deutsch
Brand Series Deutsch Autosport Heavy Duty
Connector Series ASHD
Manufacturer TE

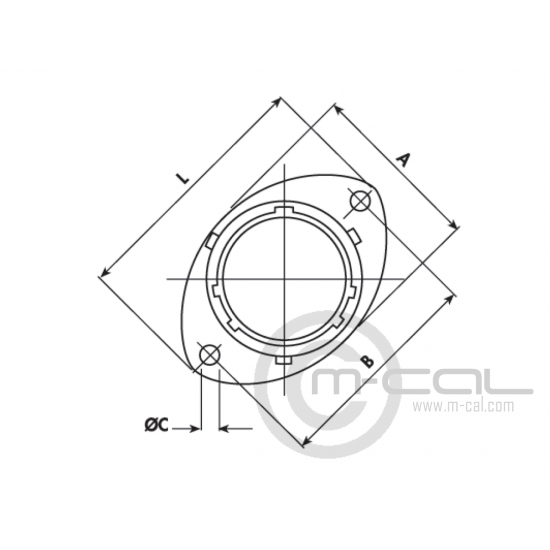

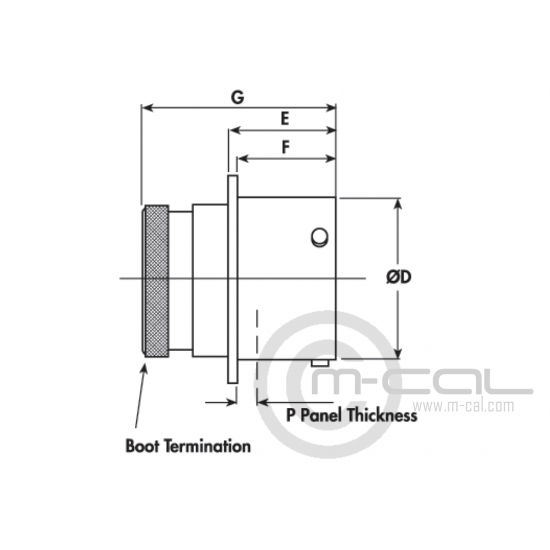

Physical Dimensions
Diameter C (mm) 3.20
Diameter D (mm) 25.40
Dimension A (mm) 30.30
Dimension B (mm) 34.80
Dimension F (mm) 16.05
Dimension G (mm) 33.50
Dimension L (mm) 41.00
Dimension P (mm) 3.00
Connector Housing Attributes
Modification Code 016
Pin Pattern 14-1
Pins / Sockets P
Shell Size 14
Total Contacts 1
Housing Code 2
Housing Style 2 - PCB Receptacle Flange Mount
Keyway Code A
Connector Contacts Data - Primary
Primary Contacts Max Amps (A) ** 200
Primary Contacts Quantity 1
Primary Contacts Size (awg) 4
Primary Contacts Wire Size (mm) 16

Tooling & Related Products

Image Product Price Quantity Add
Accessories
Gasket
Deutsch Autosport AS Connector Gasket Shell Size 14 All Keyways Standard Deutsch Autosport AS Connector Gasket Shell Size 14 All Keyways Standard
£10.02
Nut Plate
Deutsch Autosport AS Connector Nut Plate Shell Size 14 All Keyways Standard Deutsch Autosport AS Connector Nut Plate Shell Size 14 All Keyways Standard
£16.21
Pro Cap
Deutsch Autosport AS Connector Pro Cap Series Shell Size 14 Style 9 Pro Cap For Receptacle All Keyways Standard Deutsch Autosport AS Connector Pro Cap Series Shell Size 14 Style 9 Pro Cap For Receptacle All Keyways Standard
£35.90
Mating Connector Options
6 - Free plug
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets 16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets 16
£0.00
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets 25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets 25
£0.00
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets 35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets 35
£0.00
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets C16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets C16
£0.00
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets C25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets C25
£0.00
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets C35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets C35
£0.00
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets S16 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets S16
£0.00
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets S25 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets S25
£0.00
Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets S35 Deutsch Autosport ASHD Heavy Duty Connector 1 Way Shell Size 14 Pin Layout 14-1 Style 6 Free plug Yellow A Keyway Sockets S35
£0.00
Spare Contacts
Spare Pins
Autosport Connector Spare Pin ASHD Pin 16mm Cable Autosport Connector Spare Pin ASHD Pin 16mm Cable
£30.58
Tooling
Contact Positioner
Connector Autosport Toolin Crimp ASHD Jaws16mm Connector Autosport Toolin Crimp ASHD Jaws16mm
£129.03
Crimp Tool
Connector Autosport Toolin Crimp ASHD Crimp Tool Connector Autosport Toolin Crimp ASHD Crimp Tool
£0.00
Insert Extract Tool
Connector Autosport Toolin Extract Tool ASHD Connector Autosport Toolin Extract Tool ASHD
£0.00
