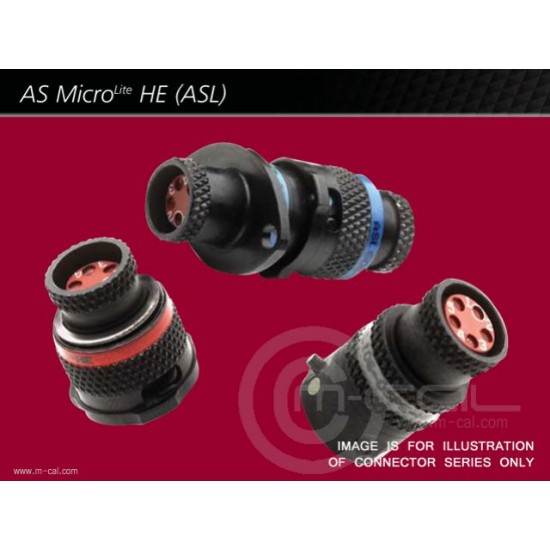

Deutsch Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 2 PCB Receptacle Flange Mount Grey E Keyway Pins Standard

The Deutsch Autosport AS MICROLite HE (ASL) series connector is in excess of 30% lighter than the origin al AS Micro HE and approximately 8mm shorter, whilst still retaining all the critical features including the renowned Deutsch #23 contacts. The AS MicroLite HE is fully intermateable with the AS Micro HE.

Features

  • 5-Way Autosport MicroLite (ASL) Series Connector
  • Body Style 2 (2 hole flanged receptacle with PCB contacts) With Pins
  • Shell Size 6, Contact Arrangement 06-05
  • E Keyway-Grey Band
  • 5x 23awg Pins (Accepts 28,26,24,22awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-860402331-P-PCB
  • Connector Overall Dimensions (Excluding Boot) Length 20x23mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro LITE HE
    Connector Series ASL
    Manufacturer TE
    Connector Housing Attributes
    Pin Pattern 06-05
    Pins / Sockets P
    Shell Size 06
    Total Contacts 5
    Wire Sealing Max (mm3) 1.37
    Wire Sealing Min (mm3) 0.60
    Housing Code 2
    Housing Style 2 - PCB Receptacle Flange Mount
    Keyway Code E
    Durability Cycles 500
    Dielectric Voltage 1000
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 3
    Primary Contacts Quantity 5
    Primary Contacts Size (awg) 23
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55
