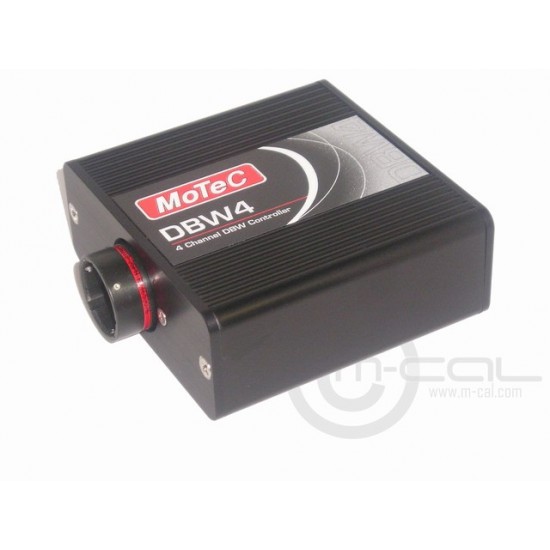

MC32-314011 - MoTeC DBW4 4ch DBW expander-PID Controller

The MoTeC Drive by Wire expander (DBW4) provides four configurable motor drives to control drive by wire throttles. The ECU sends the required motor positions to the DBW4 via CAN. The DBW4 controls the motor position using a PID algorithm, which can be adjusted using the DBW4 Manager software. The throttle position is monitored with two separate sensors to ensure a false position reading does not cause inadvertent opening of the throttle. If the reported positions from these two sensors does not agree, the throttle is shut down.

Software

Configured using the DBW4 Manager software. To connect the device to a PC running the software, a communication cable is required.

Compatible with

M400,M600,M800 and M880 (software V3.30T and later)

Specifications

Inputs

8xanalogue voltage inputs, for motor position sensors

Outputs

4 pairs of servo motor drive outputs

Communications

1xCAN

Physical

Size 99x105x40mm

Weight 320g

1x66 pin AS connector
