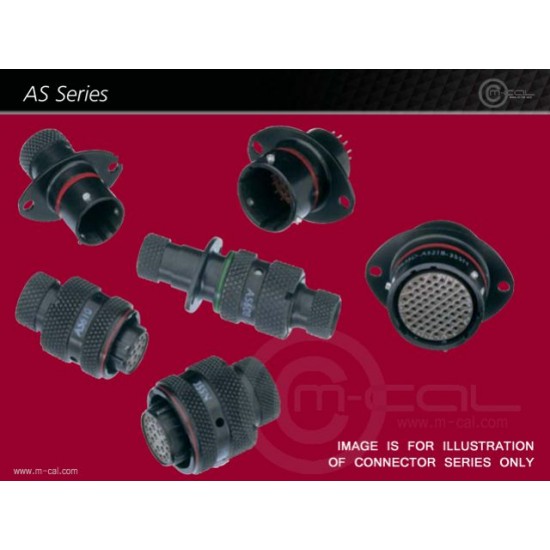

MC03-AS612-98SA - Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 6 Free plug Yellow A Keyway Sockets Standard

MC03-AS612-98SA - Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 6 Free plug Yellow A Keyway Sockets Standard
MC03-AS612-98SA - Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 6 Free plug Yellow A Keyway Sockets Standard
  • Stock: Available
  • Model: MC03-AS612-98SA
  • Weight: 30.00g
  • SKU: MC03-AS612-98SA
  • UPC: MC03-AS612-9
  • MPN: AS612-98SA-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£82.52
Add to Cart
Ask Question
Add to Wish List Compare this Product

Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 6 Free plug Yellow A Keyway Sockets Standard

The Deutsch Autosport AS SERIES connector was developed from the MIL-C-38999 Series 1.5 (Eurofighter connector), the AS Series was the first range of high specification connectors designed specifically for the autosport market. The AS Series offers weight and space saving over standard military designs and is available in a wide variety of options, with medium and high density arrangements, up to 128 ways,4 shell styles, and 5 keyway orientations.

Features

  • 10-Way Autosport AS Series Connector
  • Body Style 6 (Free plug) With Sockets
  • Shell Size 12, Contact Arrangement 12-98
  • A Keyway-Yellow Band
  • 10x 20awg Sockets (Accepts 24,22,20awg Wire) Max 7.5A
  • For Replacement Contacts Use Part Number MC05-83894320-S
  • Connector Overall Dimensions (Excluding Boot) Length 34x25mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport
    Connector Series AS
    Manufacturer TE
    Connector Housing Attributes
    Pin Pattern 12-98
    Pins / Sockets S
    Shell Size 12
    Total Contacts 10
    Wire Sealing Max (mm3) 2.11
    Wire Sealing Min (mm3) 1.02
    Housing Code 6
    Housing Style 6 - Free plug
    Keyway Code A
    Durability Cycles 500
    Dielectric Voltage 1800
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 7.5
    Primary Contacts Quantity 10
    Primary Contacts Size (awg) 20
    Temperature
    Temperature Operating Max (Deg C) +175
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Deutsch Autosport AS Connector Pro Cap Series Shell Size 12 Style 8 Pro Cap For Plug All Keyways Standard Deutsch Autosport AS Connector Pro Cap Series Shell Size 12 Style 8 Pro Cap For Plug All Keyways Standard
    £17.68
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellermann Heat Shrink Boot 90deg for AS Shell 12 Hellermann Heat Shrink Boot 90deg for AS Shell 12
    £6.70
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for AS Shell 12 Hellermann Heat Shrink Boot Straight for AS Shell 12
    £8.88
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector Shell Size 12 - 14 Raychem Boot 90Deg AS Connector Shell Size 12 - 14
    £11.46
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 12 - 14 Raychem Boot Straight AS Connector Shell Size 12 - 14
    £9.89
    Mating Connector Options
    0 - Flange Receptacle
    Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 0 Flange Receptacle Yellow A Keyway Pins Standard Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 0 Flange Receptacle Yellow A Keyway Pins Standard
    £65.15
    Deutsch Autosport AS Clinchnut Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 0 Flange Receptacle Yellow A Keyway Pins 978M Deutsch Autosport AS Clinchnut Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 0 Flange Receptacle Yellow A Keyway Pins 978M
    £0.00
    1 - Inline Receptacle
    Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 1 Inline Receptacle Yellow A Keyway Pins Standard Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 1 Inline Receptacle Yellow A Keyway Pins Standard
    £55.70
    2 - PCB Receptacle Flange Mount
    Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins Standard Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins Standard
    £81.04
    Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 120Z Black Zinc Nickel Plated Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 120Z Black Zinc Nickel Plated
    £0.00
    Deutsch Autosport AS Clinchnut Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 978M Deutsch Autosport AS Clinchnut Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 2 PCB Receptacle Flange Mount Yellow A Keyway Pins 978M
    £0.00
    4 - Flangeless Recepticle
    Deutsch Autosport AS Flangeless Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 4 Flangeless Receptacle Yellow A Keyway Pins Standard Deutsch Autosport AS Flangeless Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 4 Flangeless Receptacle Yellow A Keyway Pins Standard
    £0.00
    6 - Free plug
    Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 6 Free plug Yellow A Keyway Pins Standard Deutsch Autosport AS Connector 10 Way Shell Size 12 Pin Layout 12-98 Style 6 Free plug Yellow A Keyway Pins Standard
    £78.60
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 20g Pins Autosport Connector Filler Plugs for 20g Pins
    £0.64
    Spare Sockets
    Connector Autosport Terminal Socket AS 20awg (Bag of 10) Connector Autosport Terminal Socket AS 20awg (Bag of 10)
    £6.51
    Tooling
    Contact Positioner
    Autosport Crimp Tool Positioner for 20g Pins and Sockets Autosport Crimp Tool Positioner for 20g Pins and Sockets
    £99.57
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    MoTeC De-pinning Tool Autosport 20g De-pinning Tool (Plastic) MoTeC De-pinning Tool Autosport 20g De-pinning Tool (Plastic)
    £4.28
    Tooling Contacts Type 2
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
