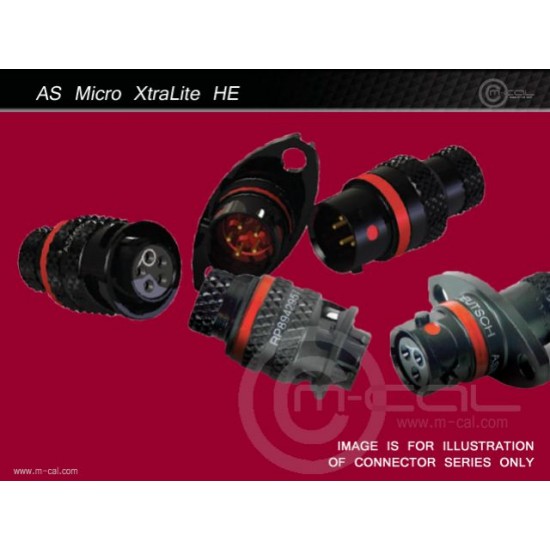

Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 6 Free plug Red N Keyway Sockets Standard

Following the Micro UltraLite HE connector range, Deutsch UK have introduced a new evolution of Motorsport Micro connectors - the Deutsch Autosport AS Micro XtraLite HE connector. The smallest diameter, lightest AS connector, this new connector offers a solution where space is at its most restrictive.

Features

  • 5-Way Autosport Micro XtraLite (ASX) Series Connector
  • Body Style 6 (Free plug) With Sockets
  • Shell Size 2, Contact Arrangement 02-05
  • N Keyway-Red Band
  • 5x 24awg Sockets (Accepts 30,28,26,24awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-8605704-S
  • Connector Overall Dimensions (Excluding Boot) Length 18x10mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport Micro XtraLITE HE
    Connector Series ASX
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour N - Red
    Pin Pattern 02-05
    Pins / Sockets S
    Shell Size 02
    Total Contacts 5
    Wire Sealing Max (mm3) 1.02
    Wire Sealing Min (mm3) 0.56
    Housing Code 6
    Housing Style 6 - Free plug
    Keyway Code N
    Durability Cycles 500
    Dielectric Voltage 1000
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 3
    Primary Contacts Quantity 5
    Primary Contacts Size (awg) 24
    Temperature
    Temperature Operating Max (Deg C) +170
    Temperature Operating Min (Deg C) -55

    Tooling & Related Products

    Image Product Price Quantity Add
    Accessories
    Pro Cap
    Autosport Pro-Cap, for Shell Size 02 ASX 3 and 5 Way Free Plugs Autosport Pro-Cap, for Shell Size 02 ASX 3 and 5 Way Free Plugs
    £30.58
    Heat Shrink Boots
    Hellerman 90Deg Boot
    Hellerman Straight Boot
    Hellermann Heat Shrink Boot Straight for ASU Shell 03 Hellermann Heat Shrink Boot Straight for ASU Shell 03
    £5.59
    Raychem 90Deg Boot
    Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX Raychem Boot 90Deg AS Connector shell size 02-03 ASU, ASX
    £8.13
    Raychem Straight Boot
    Raychem Boot Straight AS Connector Shell Size 02 ASX 3 and 5 Way Raychem Boot Straight AS Connector Shell Size 02 ASX 3 and 5 Way
    £8.71
    Mating Connector Options
    0 - Flange Receptacle
    Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 0 Flange Receptacle Red N Keyway Pins Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 0 Flange Receptacle Red N Keyway Pins Standard
    £42.51
    1 - Inline Receptacle
    Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 1 Inline Receptacle Red N Keyway Pins Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 1 Inline Receptacle Red N Keyway Pins Standard
    £42.51
    2 - PCB Receptacle Flange Mount
    Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 2 PCB Receptacle Flange Mount Red N Keyway Pins Standard
    £0.00
    6 - Free plug
    Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 6 Free plug Red N Keyway Pins Standard Deutsch Autosport ASX Micro XtraLITE HE Connector 5 Way Shell Size 02 Pin Layout 02-05 Style 6 Free plug Red N Keyway Pins Standard
    £55.12
    Spare Contacts
    Filler Plug
    Autosport Connector Filler Plugs for 20g Pins Autosport Connector Filler Plugs for 20g Pins
    £0.56
    Spare Sockets
    Autosport Connector Spare Socket ASX 5way, ASU 5Way Autosport Connector Spare Socket ASX 5way, ASU 5Way
    £2.02
    Connector Autosport Terminal Socket ASX 5way, ASU 5Way Connector Autosport Terminal Socket ASX 5way, ASU 5Way
    £19.25
    Tooling
    Contact Positioner
    Autosport Crimp Tool Positioner for ASDD Sockets Autosport Crimp Tool Positioner for ASDD Sockets
    £142.49
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
    Insert Extract Tool
    Deutsch Autosport 24-30g De-pinning Tool (Plastic) Deutsch Autosport 24-30g De-pinning Tool (Plastic)
    £3.26
    Tooling Contacts Type 2
    Crimp Tool
    Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
    £673.19
