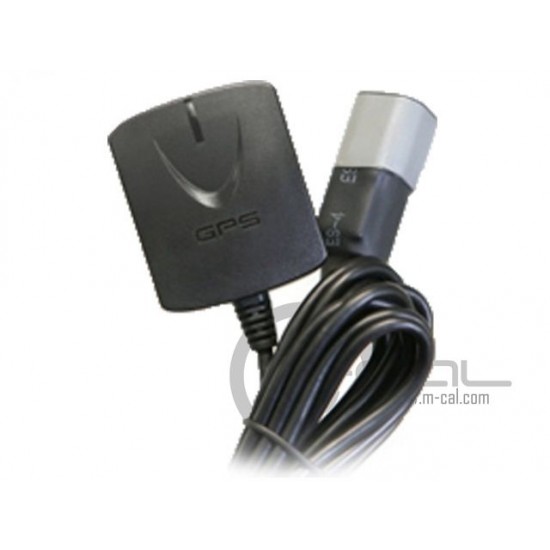

MC25-379324 - MoTeC GPS GPS-L10 10Hz GPS (Data)

The MoTeC GPS-L10 is a 10 Hz GPS which combines the electronics and antenna into one small unit. A highly sensitive receiver allows the GPS to lock onto signals even in difficult environments. It is fitted with a DTM connector and is pre-configured to be compatible with MoTeC Dash/Data Loggers. It is not compatible with MoTeC ECUs. (See GPS-L5)

This unit is suitable for speed, position and lap timing.

Compatible with

MoTeC ACL

MoTeC ADL3, ADL2 (not compatible with original ADLs)

MoTeC SDL3, SDL

Specifications

Performance

Update rate 10 Hz

66 satellite channels

Dynamics 4G

Power supply voltage 4.0 – 6.0V

Communications

RS232

Baud rate: 38400

Physical

Case size 48 mm x 41 mm x 14 mm

Weight 106g

1 x 4 pin Deutsch DTM, 3 m flying lead

Built in antenna

Mounting - magnetic base
