MC07-3301A022 - Raychem Heat Shrink Boot Symmetrical Tee H6.9 J6.9 K6.9

MC07-3301A022 - Raychem Heat Shrink Boot Symmetrical Tee H6.9 J6.9 K6.9
MC07-3301A022 - Raychem Heat Shrink Boot Symmetrical Tee H6.9 J6.9 K6.9
  • Stock: Available
  • Model: MC07-3301A022
  • Weight: 3.70g
  • SKU: MC07-3301A022
  • UPC: MC07-3301A02
  • MPN: 301A022-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£21.55
Add to Cart
Ask Question
Add to Wish List Compare this Product

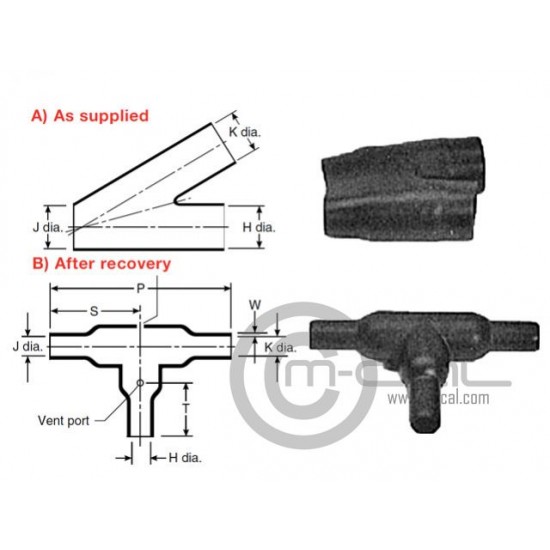

Raychem Heat Shrink Boot Symmetrical Tee H6.9 J6.9 K6.9



Raychem Heat Shrink Boot Symmetrical Tee 301A022

  • Cable Entry (H) As Supplied 13.2mm - Fully Recovered 6.9mm
  • Cable Entry (J) As Supplied 13.2mm - Fully Recovered 6.9mm
  • Cable Entry (K) As Supplied 13.2mm - Fully Recovered 6.9mm

    Based on heatshrink technology the Raychem 301A series heat-shrinkable boot offers mechanical protection sealing, protecting the joints and splicing offering mechanical strain relief. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

    Typical Features & Benefits
    • Operating Temperature -75ºC to +150ºC
    • Excellent chemical and abrasion resistance
    • Long-term, high temperature fluid resistance
    • Minimum Shrink Temperature +135ºC
    • Recommended Installation Temperature +175ºC
    • Colour-Black
    • Connector Housing Attributes
    Total Contacts 0
