MC07-3301A048 - Raychem Heat Shrink Boot Symmetrical Tee H30.2 J30.2 K30.2

MC07-3301A048 - Raychem Heat Shrink Boot Symmetrical Tee H30.2 J30.2 K30.2
MC07-3301A048 - Raychem Heat Shrink Boot Symmetrical Tee H30.2 J30.2 K30.2
  • Stock: Email For Price & Availability
  • Model: MC07-3301A048
  • Weight: 13.00g
  • SKU: MC07-3301A048
  • UPC: MC07-3301A04
  • MPN: 301A048-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£0.00
Add to Cart
Ask Question
Add to Wish List Compare this Product

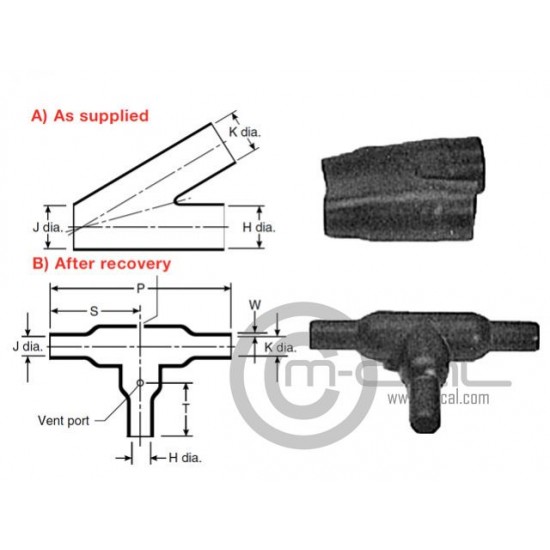

Raychem Heat Shrink Boot Symmetrical Tee H30.2 J30.2 K30.2



Raychem Heat Shrink Boot Symmetrical Tee 301A048

  • Cable Entry (H) As Supplied 55.6mm - Fully Recovered 30.2mm
  • Cable Entry (J) As Supplied 55.6mm - Fully Recovered 30.2mm
  • Cable Entry (K) As Supplied 55.6mm - Fully Recovered 30.2mm

    Based on heatshrink technology the Raychem 301A series heat-shrinkable boot offers mechanical protection sealing, protecting the joints and splicing offering mechanical strain relief. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

    Typical Features & Benefits
    • Operating Temperature -75ºC to +150ºC
    • Excellent chemical and abrasion resistance
    • Long-term, high temperature fluid resistance
    • Minimum Shrink Temperature +135ºC
    • Recommended Installation Temperature +175ºC
    • Colour-Black
    • Connector Housing Attributes
    Total Contacts 0
