Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard

Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Pins Standard
  • Stock: Email For Price & Availability
  • Model: MC03-AS616-26PU-HE
  • Weight: 44.60g
  • SKU: MC03-AS616-26PU-HE
  • UPC: MC03-AS616-2
  • MPN: AS616-26PU-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£0.00
Add to Cart
Ask Question
Add to Wish List Compare this Product
Manufacturer
Brand Deutsch
Brand Series Deutsch Autosport
Connector Series AS
Manufacturer TE
Physical Dimensions

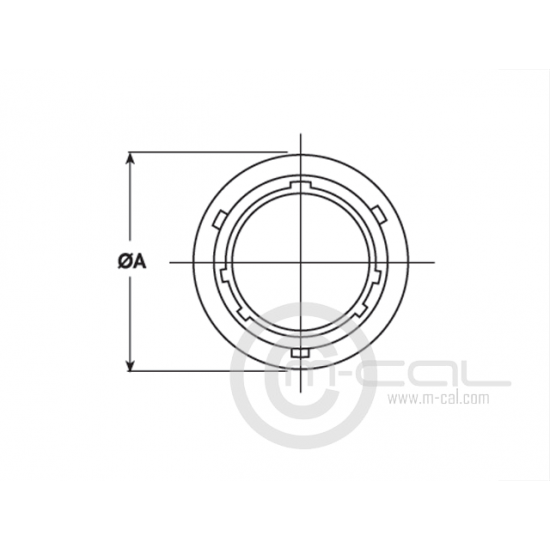

Diameter A (mm) 31.50
Diameter OD (mm) 31.50

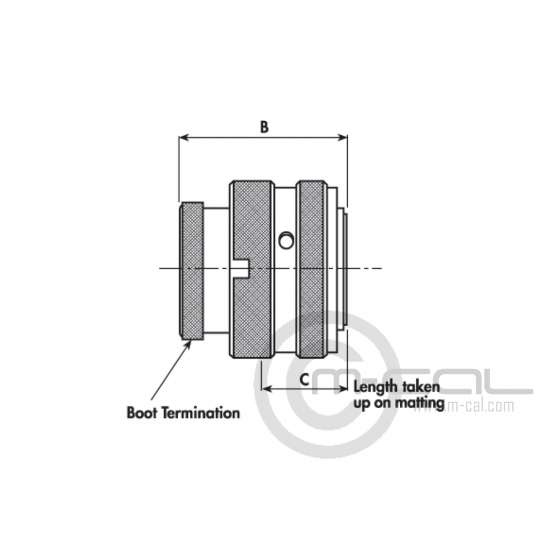

Dimension A (mm) 31.50
Dimension B (mm) 33.50
Dimension C (mm) 15.00
Height (mm) 31.50
Length (mm) 33.50
Width (mm) 31.50
Connector Housing Attributes
Pin Pattern 16-26
Pins / Sockets P
Shell Size 16
Total Contacts 26
Wire Sealing Max (mm3) 2.11
Wire Sealing Min (mm3) 1.02
Housing Code 6
Housing Style 6 - Free plug
Keyway Code U
Durability Cycles 500
Dielectric Voltage 1800
Connector Contacts Data - Primary
Primary Contacts Max Amps (A) ** 7.5
Primary Contacts Quantity 26
Primary Contacts Size (awg) 20
Temperature
Temperature Operating Max (Deg C) +175
Temperature Operating Min (Deg C) -55

Tooling & Related Products

Image Product Price Quantity Add
Accessories
Pro Cap
Deutsch Autosport AS Connector Pro Cap Series Shell Size 16 Style 8 Pro Cap For Plug All Keyways Standard Deutsch Autosport AS Connector Pro Cap Series Shell Size 16 Style 8 Pro Cap For Plug All Keyways Standard
£17.68
Heat Shrink Boots
Hellerman 90Deg Boot
Hellermann Heat Shrink Boot 90deg for AS Shell 16, 18 Hellermann Heat Shrink Boot 90deg for AS Shell 16, 18
£10.30
Hellerman Straight Boot
Hellermann Heat Shrink Boot Straight for AS Shell 16, 18 Hellermann Heat Shrink Boot Straight for AS Shell 16, 18
£7.80
Raychem 90Deg Boot
Raychem Boot 90Deg AS Connector Shell Size 16 - 18 Raychem Boot 90Deg AS Connector Shell Size 16 - 18
£14.23
Raychem Straight Boot
Raychem Boot Straight AS Connector Shell Size 16 - 18 Raychem Boot Straight AS Connector Shell Size 16 - 18
£11.43
Mating Connector Options
6 - Free plug
Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Sockets Standard Deutsch Autosport AS Connector 26 Way Shell Size 16 Pin Layout 16-26 Style 6 Free plug Violet U Keyway Sockets Standard
£0.00
Spare Contacts
Filler Plug
Autosport Connector Filler Plugs for 20g Pins Autosport Connector Filler Plugs for 20g Pins
£0.64
Spare Pins
Connector Autosport Terminal Pin AS 20awg (Bag of 10) Connector Autosport Terminal Pin AS 20awg (Bag of 10)
£5.30
Tooling
Contact Positioner
Autosport Crimp Tool Positioner for 20g Pins and Sockets Autosport Crimp Tool Positioner for 20g Pins and Sockets
£99.57
Crimp Tool
Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU Autosport Crimp Tool for AS Micro, Mini, ASL, ASR, ASC, ASU
£673.19
Insert Extract Tool
MoTeC De-pinning Tool Autosport 20g De-pinning Tool (Plastic) MoTeC De-pinning Tool Autosport 20g De-pinning Tool (Plastic)
£4.28
