MC32-314007 - MoTeC E888-I-O Expander Module

MC32-314007 - MoTeC E888-I-O Expander Module
- Stock: Available
- Model: MC32-314007
- Weight: 312.10g
- SKU: MC32-314007
- UPC: MC32-314007
- MPN: 14007
£870.98

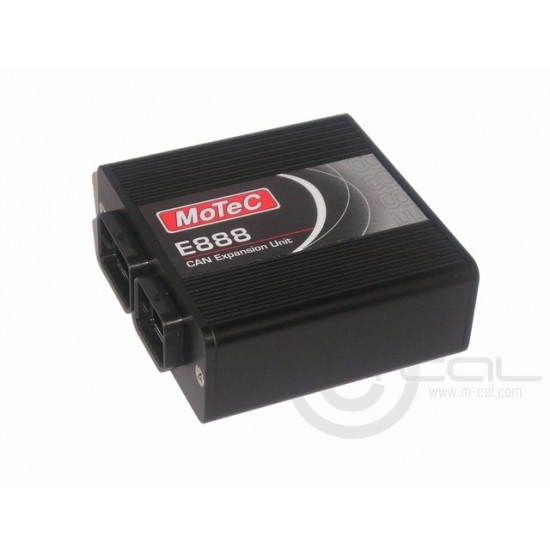

The MoTeC E888 CAN Expansion Module combines several input and output functions into one convenient module which can be mounted near the sensors and only requires 6 wires to communicate with the Dash Logger or M400-600-800-880 ECU.* E888 Features 8 Thermocouple temperature inputs, 2 Cold Junction Compensation (CJC) inputs, 8 analog voltage inputs, 4 (1 - 5Khz) digital inputs, 2 switched inputs and 8 PWM capable outputs. PWM 1, 3, 5, 7 may be run between 8Hz and 5KHz and duty cycle may be controlled between 0 and 100Percent in 255 steps. PWM 2,4,6,8 may be run between 1Hz and 100Hz and duty cycle may be controlled between 0 and 100Percent in 20 steps. Specifications E888/816 Transmit this data; Thermocouple Weight 3/4 pound Temperatures, CJC Temperatures, Digital Connector 34 Pin and 26 Pin.
