MC07-3R202K174-25-0 - Raychem Boot Straight AS Connector Shell Size 24

MC07-3R202K174-25-0 - Raychem Boot Straight AS Connector Shell Size 24
MC07-3R202K174-25-0 - Raychem Boot Straight AS Connector Shell Size 24
  • Stock: Available
  • Model: MC07-3R202K174-25-0
  • Weight: 44.50g
  • SKU: MC07-3R202K174-25-0
  • UPC: MC07-3R202K1
  • MPN: 202K174-25-0
Raychem Raychem
Based on 0 reviews. - Write a review
£20.32
Add to Cart
Ask Question
Add to Wish List Compare this Product
Straight Heat Shrink Boot for Autosport Connector Shell Size 24

Raychem 202K Series Heat Shrinkable Boot

Based on heatshrink technology the Raychem 202K series heat-shrinkable boot offers mechanical protection sealing and protecting the connector termination and offering mechanical strain relief for the Deutsch Autosport circular connectors and grooved adaptors. Fluid resistant modified Elastomer -25 material provides excellent chemical and abrasion resistance at elevated temperatures. The unique balance of properties make it ideal for demanding cable harness systems.

Typical Features & Benefits
  • Operating Temperature -75ºC to +150ºC
  • Excellent chemical and abrasion resistance
  • Long-term, high temperature fluid resistance
  • Minimum Shrink Temperature +135ºC
  • Recommended Installation Temperature +175ºC

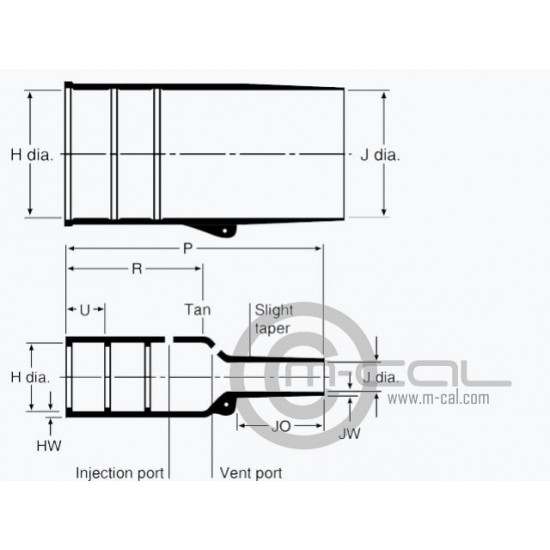

  • Connector Entry(H) As Supplied 60.00mm-Fully Recovered 35.10mm
  • Cable Entry(J) As Supplied 60.00mm-Fully Recovered 15.70mm
  • Colour-Black
Connector Housing Attributes
Total Contacts 0
