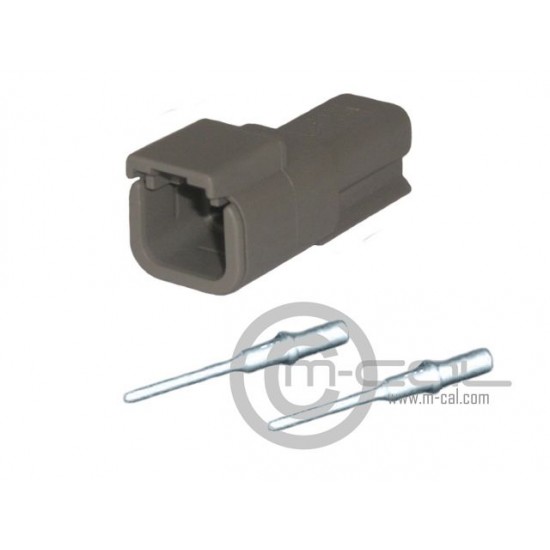

MC04-768051 - MoTeC DTM Connector 2 Way Male Kit

MoTeC DTM Connector 2 Way Male Kit

Deutsch DTM Series connectors feature a miniature contact with an enhanced design based on the world class, field-proven Deutsch DT Series. The DTM is the connector to be used in harsh environment applications where reliable signal circuits are critical to operating performance. The field proven Deutsch design of the DTM will provide reliable peak connector performance. Closed entry socket (female) contacts with spring action fingers protected by a stainless steel hood for positive axial alignment while mating. Silicone seals allow the DTM to withstand moisture and fluids.

Features & Benefits

• Rugged thermoplastic housing
• Integral connector latch
• Fail safe secondary locks
• -55C to +125C operating temperature
• Available in 2w 3w 4w 6w 8 & 12w contact arrangements
• Silicone seals
• Accepts AWG 16-24 (1.0mm2 to 0.2mm2)
• Current rating 7.5A all contacts @125C continuous
• Hand insertable-removable contacts
• IP67 to IP6K 9K
• Vibration resistant to over 20g at 10-2000Hz
