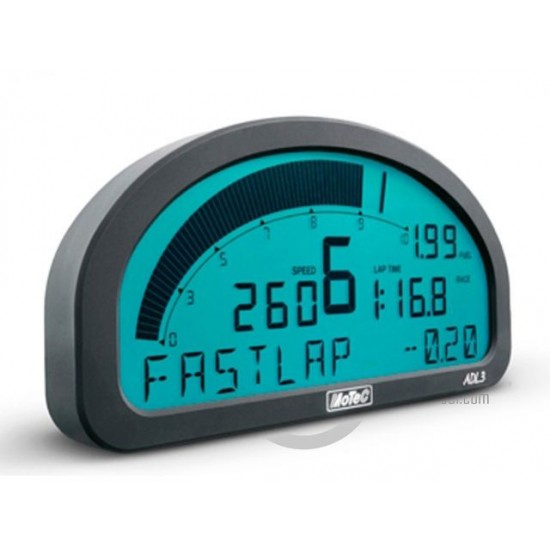

MC35-318014 - Motec ADL3 Advanced Dash Logger (Non Backlit)

MoTeCs Advanced Dash Logger ADL3 is a combined display, programmable data logger and powerful control device. As standard the ADL3 has 16MB of data logging upgradeable to 250MB. The screen layout is configurable to display channels, warning alarms, lap times, fuel calcs and more. Four aux outputs to control external devices, additional outputs available as an upgrade or by using expander modules.A telemetry option is available for real time data analysis.

Basic Spec

Logging

16 MB standard (250 MB optional)

Logging up to 1000hz

Ethernet download
Display

70 segment bar graph

13 digit alphanumeric text bar

20 user message lines

3 pages Practice, Warm-Up, Race
Inputs

10xAV inputs(24 optional)

4xAnalogue temperature inputs(8optional)

4xDigital inputs

4xSpeed inputs

4xSwitched inputs

Compatible with VIM
Outputs

4xPWM/digital/switched(8optional)
Comms

2xCAN

1xRS232
Physical

180x91x18mm

385g

1x79 pin AS connector (Not Included)
