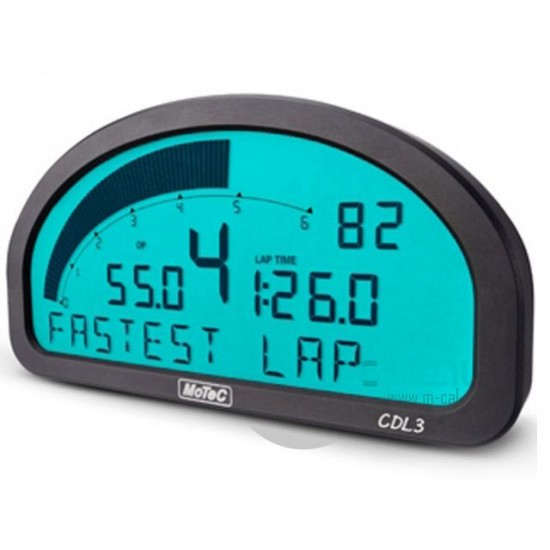

MC35-318022 - MoTeC Dash CDL3 Club Dash Logger non logging Base model

The MoTeC CDL3 Club Dash Logger is a fully configurable backlit display, controller and logging device. It offers the same quality and advanced technology as our top of the line systems, with a package of features tailored to suit entry level motorsport requirements such as club racing. The screen layout can be tailored to suit individual preferences and is able to display a large number of data channels, warning alarms, lap times, fuel calculations and more.

Basic specifications

Communications

2 x Configurable CAN or RS232 bus with individually programmable CAN bus speeds

1 x Dedicated RS232

Physical

Dimensions 180x91x18mm excluding connector

Weight 385g

1 x 34 pin AMP connector

Inputs (optional)

Provision for 4 x analogue voltage high resolution inputs

Provision for 2 x analogue temperature inputs

2 x Digital inputs

3 x Speed inputs

Compatible with E888 expander (8 Thermocouples only)

Outputs (optional)

4 x PWM, switched or digital outputs
