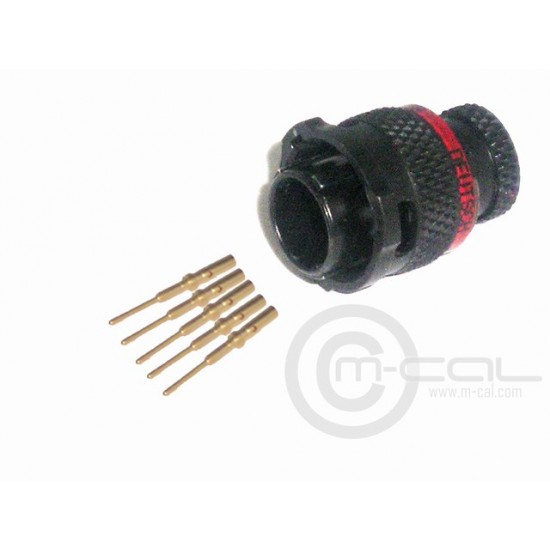

MC03-368103 - MoTeC Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard

MC03-368103 - MoTeC Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
MC03-368103 - MoTeC Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard
  • Stock: Available
  • Model: MC03-368103
  • Weight: 14.30g
  • SKU: MC03-368103
  • UPC: MC03-368103
  • MPN: ASL606-05PN-HE
MoTeC MoTeC
Based on 0 reviews. - Write a review
£48.10
Add to Cart
Ask Question
Add to Wish List Compare this Product

MoTeC Autosport ASL MicroLITE HE Connector 5 Way Shell Size 06 Pin Layout 06-05 Style 6 Free plug Red N Keyway Pins Standard

The Deutsch Autosport AS MICROLite HE (ASL) series connector is in excess of 30% lighter than the origin al AS Micro HE and approximately 8mm shorter, whilst still retaining all the critical features including the renowned Deutsch 23awg contacts. The AS MicroLite HE is fully intermateable with the AS Micro HE.


Features

  • 5-Way Autosport MicroLite (ASL) Series Connector
  • Body Style 6 (Free plug) With Pins
  • Shell Size 6, Contact Arrangement 06-05
  • N Keyway-Red Band
  • 5x 23awg Pins (Accepts 28,26,24,22awg Wire) Max 3.0A
  • For Replacement Contacts Use Part Number MC05-860492731-P
  • Connector Overall Dimensions (Excluding Boot) Length 19x14mm

Includes connector body, contacts & Insert-Extract Tool


See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling



Manufacturer
Brand Deutsch
Brand Series Deutsch Autosport Micro LITE HE
Connector Series ASL
Manufacturer TE
Connector Housing Attributes
Keyway Colour N - Red
Pin Pattern 06-05
Pins / Sockets P
Shell Size 06
Total Contacts 5
Wire Sealing Max (mm3) 1.37
Wire Sealing Min (mm3) 0.60
Housing Code 6
Housing Style 6 - Free plug
Keyway Code N
Durability Cycles 500
Dielectric Voltage 1000
Connector Contacts Data - Primary
Primary Contacts Max Amps (A) ** 3
Primary Contacts Quantity 5
Primary Contacts Size (awg) 23
Temperature
Temperature Operating Max (Deg C) +170
Temperature Operating Min (Deg C) -55
