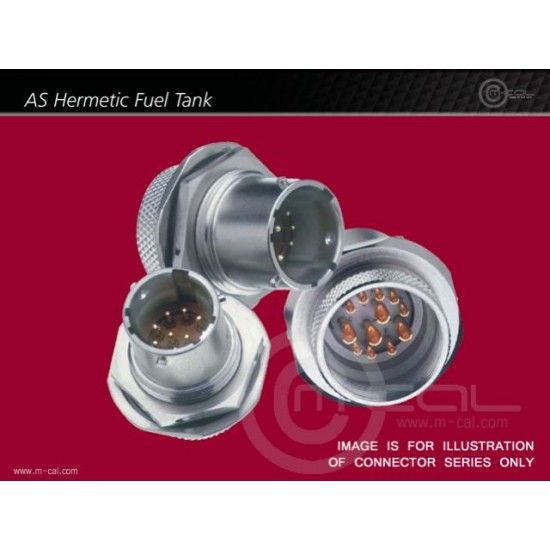

Deutsch Autosport AS Hermetic Fuel Tank Connector 6 Way Shell Size 10 Pin Layout 10-35 Style 7 Jam Nut Receptacle Red N Keyway Pins Standard

Deutsch Autosport AS Hermetic Fuel Tank Connector 6 Way Shell Size 10 Pin Layout 10-35 Style 7 Jam Nut Receptacle Red N Keyway Pins Standard
Deutsch Autosport AS Hermetic Fuel Tank Connector 6 Way Shell Size 10 Pin Layout 10-35 Style 7 Jam Nut Receptacle Red N Keyway Pins Standard
Deutsch Autosport AS Hermetic Fuel Tank Connector 6 Way Shell Size 10 Pin Layout 10-35 Style 7 Jam Nut Receptacle Red N Keyway Pins Standard
Deutsch Autosport AS Hermetic Fuel Tank Connector 6 Way Shell Size 10 Pin Layout 10-35 Style 7 Jam Nut Receptacle Red N Keyway Pins Standard
Deutsch Autosport AS Hermetic Fuel Tank Connector 6 Way Shell Size 10 Pin Layout 10-35 Style 7 Jam Nut Receptacle Red N Keyway Pins Standard
Deutsch Autosport AS Hermetic Fuel Tank Connector 6 Way Shell Size 10 Pin Layout 10-35 Style 7 Jam Nut Receptacle Red N Keyway Pins Standard
Deutsch Autosport AS Hermetic Fuel Tank Connector 6 Way Shell Size 10 Pin Layout 10-35 Style 7 Jam Nut Receptacle Red N Keyway Pins Standard
  • Stock: Available
  • Model: MC03-AS07PT10-35PN
  • Weight: 40.00g
  • SKU: MC03-AS07PT10-35PN
  • UPC: MC03-AS07PT1
  • MPN: AS07PT10-35PN-HE
TE Deutsch Autosport TE Deutsch Autosport
Based on 0 reviews. - Write a review
£257.48
Add to Cart
Ask Question
Add to Wish List Compare this Product

The Deutsch Autosport AS SERIES connector was developed from the MIL-C-38999 Series 1.5 (Eurofighter connector), the AS Series was the first range of high specification connectors designed specifically for the autosport market. The AS Series offers weight and space saving over standard military designs and is available in a wide variety of options, with medium and high density arrangements, up to 128 ways,4 shell styles, and 5 keyway orientations.

Features

  • 6-Way Autosport AS Hermetic Fuel Tank(7PT) Series Connector
  • Body Style 0 (2 hole flanged receptacle) With Pins
  • Shell Size 10, Contact Arrangement 10-35
  • N Keyway-Red Band
  • 6x 20awg Pins (Accepts 24,22,20awg Wire) Max 7.5A
  • For Replacement Contacts Use Part Number MC05-83894120-P
  • Connector Overall Dimensions (Excluding Boot) Length 35x28mm
  • Includes connector body, contacts & Insert-Extract Tool

    See Tooling And Accessories Tab for Mating Connectors, Boots, Spare Contacts And Tooling

    • Manufacturer
    Brand Deutsch
    Brand Series Deutsch Autosport
    Connector Series AS
    Manufacturer TE
    Connector Housing Attributes
    Keyway Colour N - Red
    O-Ring 429320-18
    Pin Pattern 10-35
    Pins / Sockets P
    Sealing 1 x 10-8 cc/sec @ 15 PSI
    Sealing Pressure (PSI) 1000
    Shell Size 10
    Thread M18x1.0
    Total Contacts 6
    Wire Sealing Max (mm3) 2.11
    Wire Sealing Min (mm3) 1.02
    Housing Code 07PT
    Housing Style 7 - Jam Nut Recepticle
    Keyway Code N
    Durability Cycles 500
    Dielectric Voltage 1800
    Connector Contacts Data - Primary
    Primary Contacts Max Amps (A) ** 7.5
    Primary Contacts Quantity 6
    Primary Contacts Size (awg) 20
    Temperature
    Temperature Operating Max (Deg C) +175
    Temperature Operating Min (Deg C) -55
